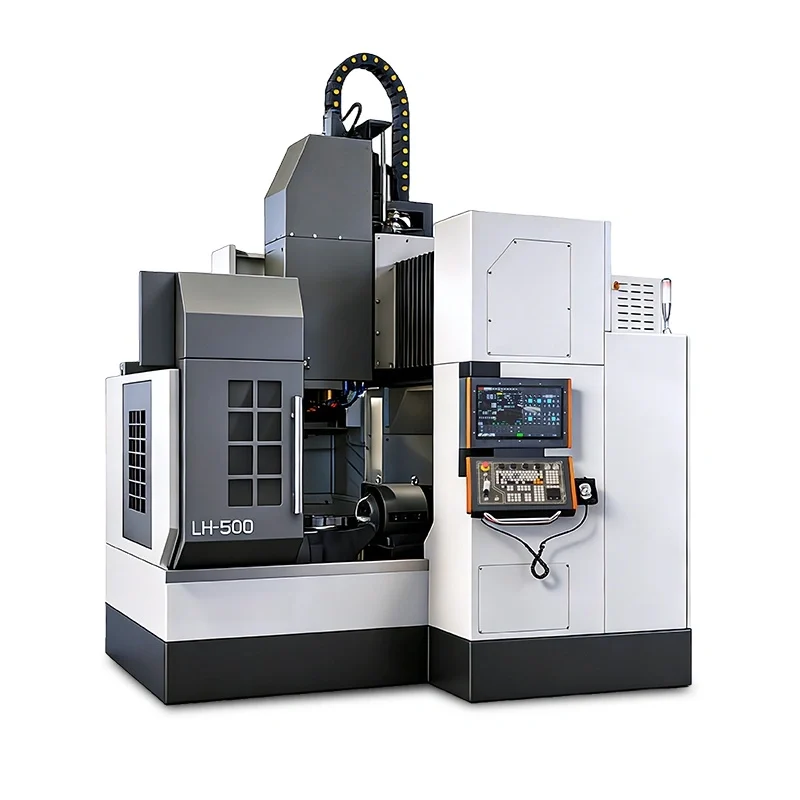

LH500
5-Axis Machining Center
- Rotary Table
Φ500mm
- X-axis Travel Distance
600mm
- Y-axis Travel Distance
1000mm
- Z-axis Travel Distance
600mm
Machine Introduction
Introduction
The LH500 gantry 5 axis machining center is a medium-size heavy-duty model. Its design combines a gantry structure with five-axis machining for buyers comparing this machine design.
Assess the complete setup, including fixture mass, tool approach and clearance during rotary motion. The LH400 shares the same size and construction description in this product range, so a useful comparison needs the actual specification sheets. Submit the workpiece geometry and cutting requirements to discuss the LH500 configuration.
Key Features
*Spindle taper hole BBT40, spindle speed 12000 rpm
*X/Y/Z axis travel: 600/1000/600 mm, X/Z rapid shift 15 m/min, Y rapid shift 12 m/min
*Machine size 3495×2829×4150 mm, machine weight 9000 kg
Machine Details
Technical Parameters
| Speicifications | LH500 |
|---|---|
| Table size (mm) | Φ500 |
| Max. worktable load(kg) | 350 |
| Max load capacity(kg) | 200 |
| Spindle max. speed(rpm) | 12000 |
| Spindle holder type | BT40 |
| X axis rapid traverse(m/min) | 15 |
| Y axis rapid traverse(m/min) | 12 |
| Z axis rapid traverse(m/min) | 15 |
| Machine size (mm) | 3495L*2829W*4150H |
| Machine weight (KG) | 9000 |
| X‑axis travel(mm) | 1300 |
| Y-axis travel(mm) | 700 |
| Z-axis travel(mm) | 750 |
Related Products
LH400 5-Axis Machining Center
U260 5-Axis Machining Center
U400 5-Axis Machining Center
TMC630 5-Axis Machining Center
Frequently Asked Questions
Q: How should I compare the LH400 and LH500?
A: Both are medium-size heavy-duty gantry five-axis models. Compare their actual travel, table load, spindle characteristics and axis arrangement against the same part and fixture.
Q: Does gantry construction establish the rotary-axis arrangement?
A: No. Confirm whether the required orientation comes from the head, table or a combination, and assess the resulting tool access.
Q: Does heavy-duty establish a numerical load rating?
A: No. Check the rated workpiece and fixture load, its distribution and any limits for tilted or rotating operation.
