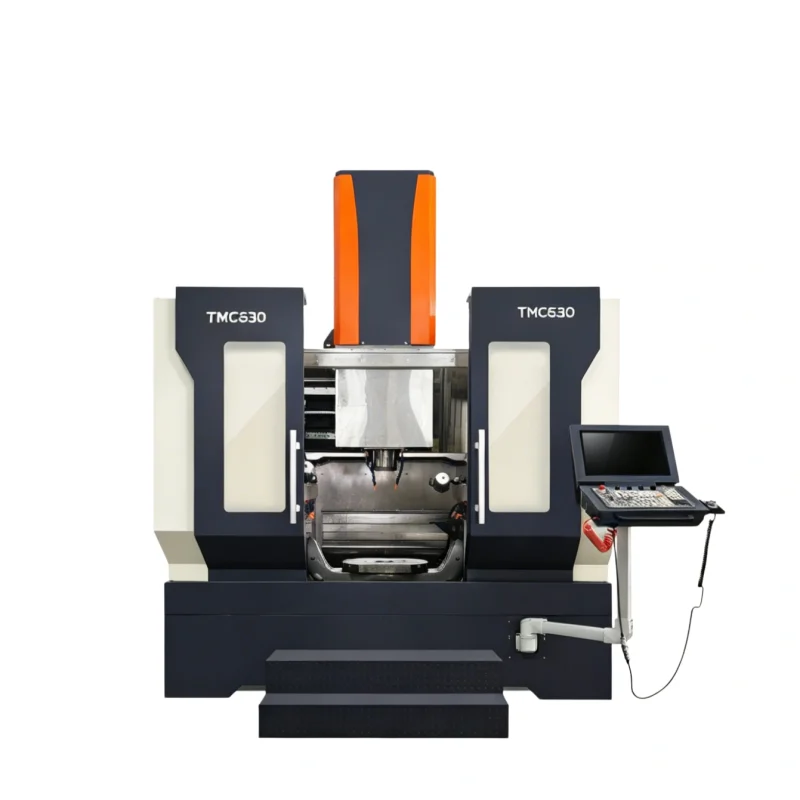

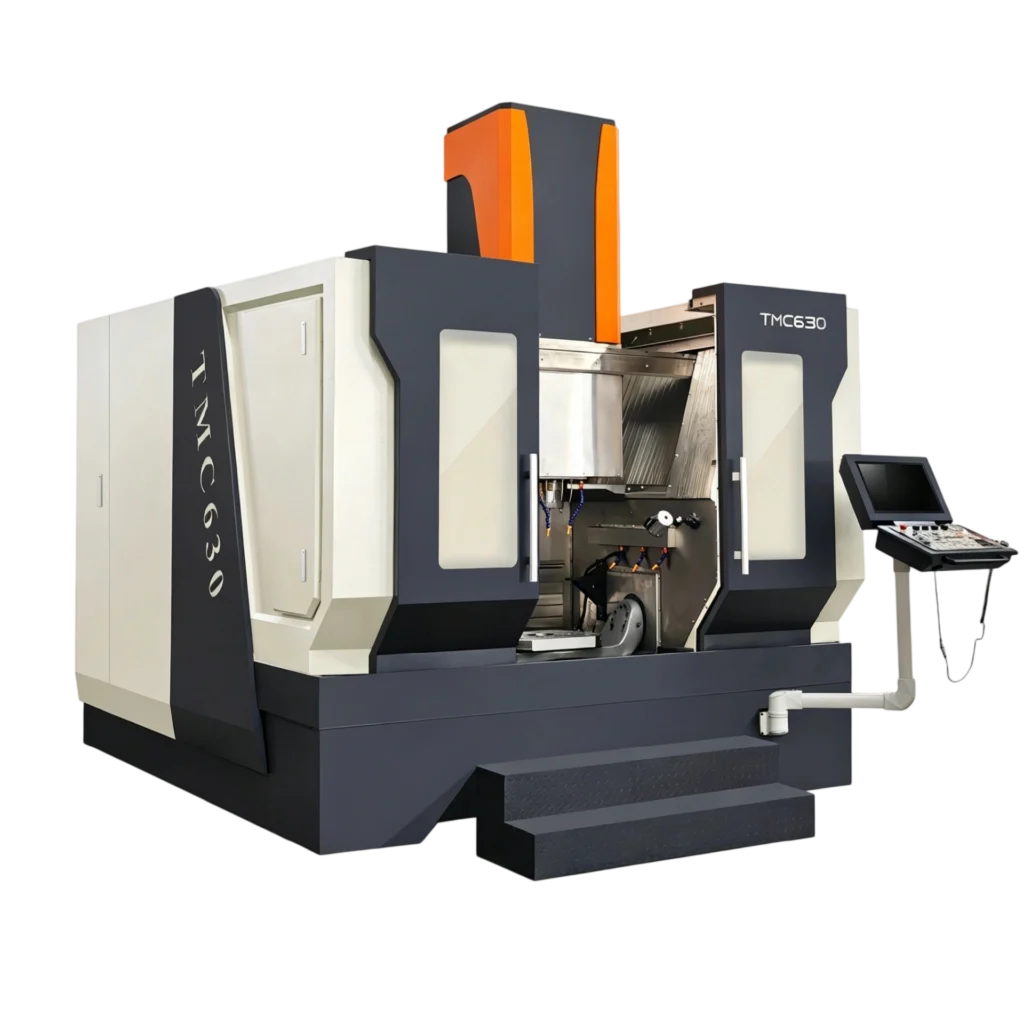

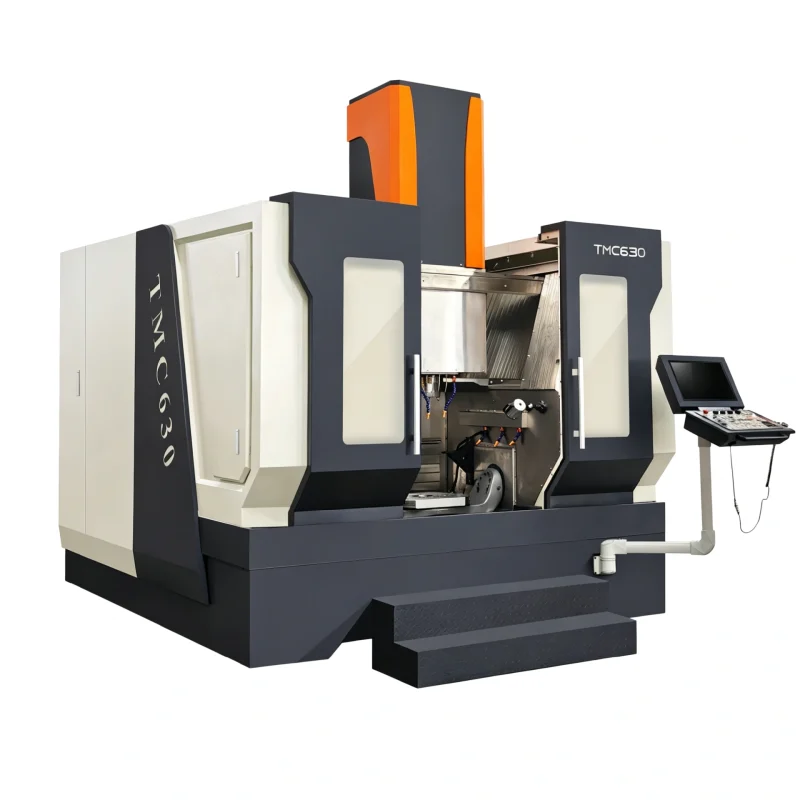

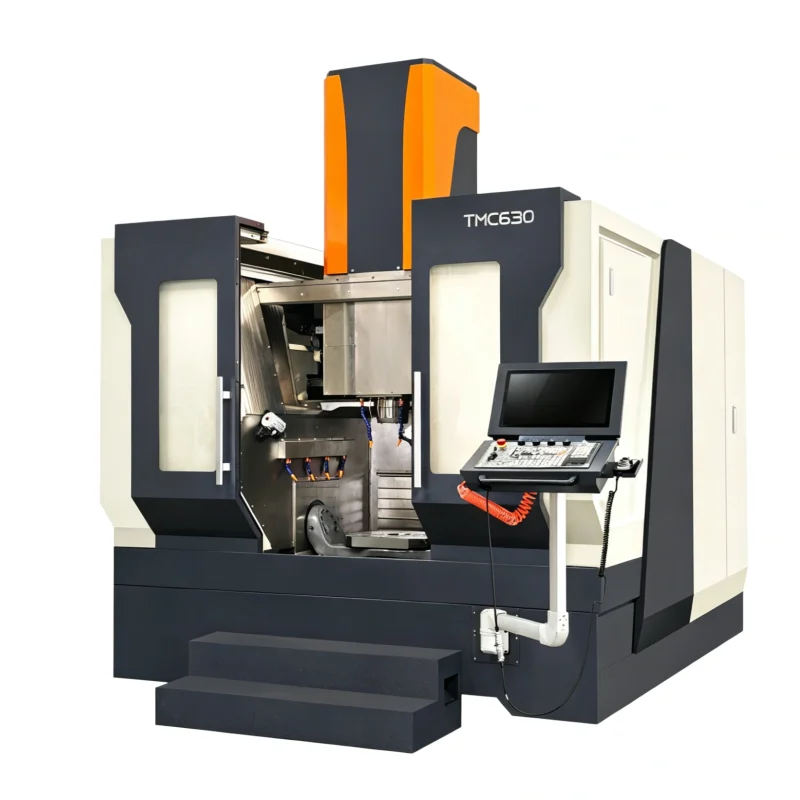

TMC630
5-Axis Machining Center
- Rotary Table
Φ650mm
- X-axis Travel Distance
700mm
- Y-axis Travel Distance
940mm
- Z-axis Travel Distance
550mm
Machine Introduction
Introduction
The TMC630 is a high speed 5 axis machining center in the small size class. Consider it when five-axis access and high-speed machining requirements are both part of the selection brief.
Review the intended toolpath and tool sizes alongside spindle and CNC specifications. Required feed behavior, feature access and finish should be assessed as one process. Compare the TMC800 for the alternative size class, and provide a representative 3D part model to discuss the proposed machining approach.
Key Features
*X/Y/Z axis travel: 700/350+590 (including tool change stroke)/550 mm, A-axis tilt range ±110°, C-axis rotation 360°
*C-axis rotary table diameter 650 mm, allowable load 500 kg, C-axis maximum speed 400 rpm, A-axis maximum speed 100 rpm
*Spindle taper HSKT63, max spindle speed 15000 rpm
Machine Details
Technical Parameters
| Speicifications | TMC630 |
|---|---|
| Rotary table (C-axis) Table diameter(mm) | Φ650 |
| Rotary table (C-axis) Permissible load(kg) | 500 |
| Rotary table (C-axis) Max speed(rpm) | 400 |
| A-axis Max speed(rpm) | 100 |
| Spindle holder type | HSK-T63 |
| A-axis tilt range(deg) | ±110° |
| C-axis rotation range | 360° |
| Max. spindle speed(r/min) | 15000 |
| Machine weight (KG) | 11000 |
| X‑axis travel(mm) | 700 |
| Y-axis travel(mm) | 940 |
| Z-axis travel(mm) | 550 |
Related Products
LH400 5-Axis Machining Center
U260 5-Axis Machining Center
U400 5-Axis Machining Center

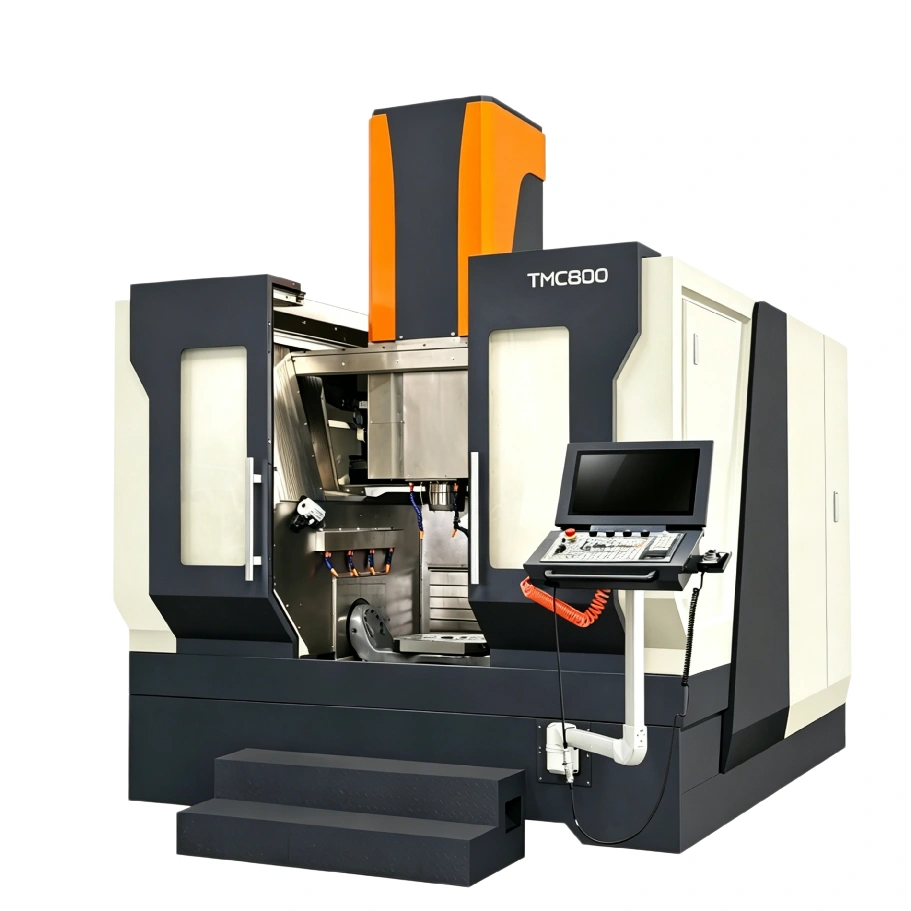

TMC800 5-Axis Machining Center
Frequently Asked Questions
Q: How does the TMC800 compare with the TMC630?
A: The TMC630 is the small size class in the high-speed TMC range. Compare verified working envelopes and spindle specifications for the job.
Q: How should I assess the spindle for high-speed work?
A: Match its continuous speed range, available power and toolholder requirements to the planned cutters and material. Peak rpm alone is not enough to assess the process.
Q: Which range should I compare if the part also needs turning?
A: Compare the HTMC500T and HTMC800T five-axis turn-mill models. Turning requires a suitable machine configuration in addition to five-axis milling access.
