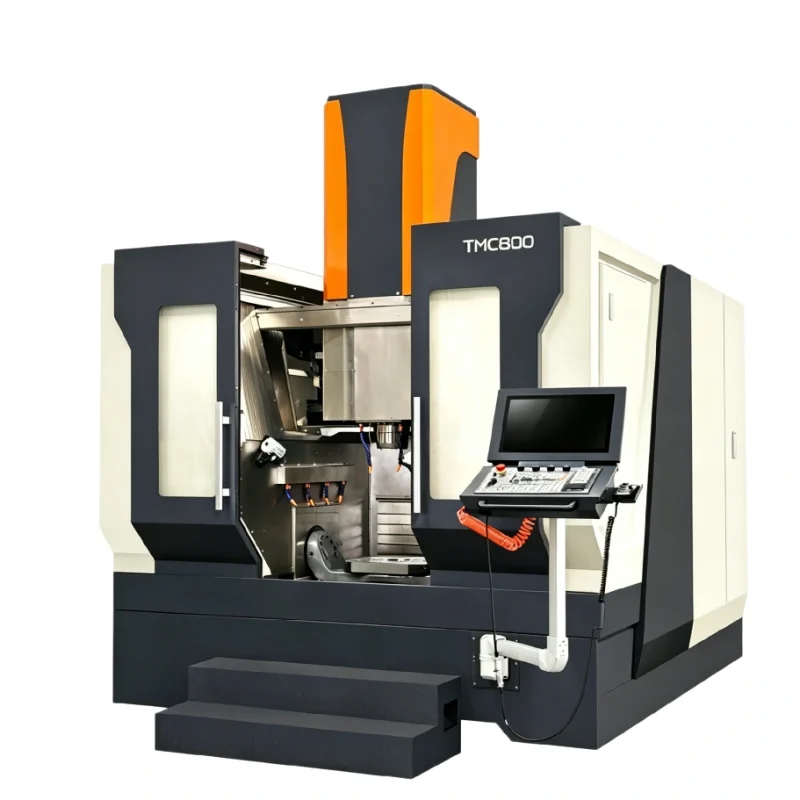

TMC800
5-Axis Machining Center
- Rotary Table
Φ800mm
- X-axis Travel Distance
850mm
- Y-axis Travel Distance
1040mm
- Z-axis Travel Distance
600mm
Machine Introduction
Introduction
The TMC800 high speed 5 axis machining center is the medium-size model in the TMC range. Consider it when five-axis access and high-speed machining requirements are both part of the selection brief.
Review the intended toolpath and tool sizes alongside spindle and CNC specifications. Required feed behavior, feature access and finish should be assessed as one process. Compare the TMC630 for the alternative size class, and provide a representative 3D part model to discuss the proposed machining approach.
Key Features
*Spindle taper HSK-T63, max spindle speed 15000 rpm
*Machine weight 11 T
Machine Details
Technical Parameters
| Speicifications | TMC800 |
|---|---|
| Rotary table (C-axis) Table diameter(mm) | Φ800 |
| Rotary table (C-axis) Permissible load(kg) | 500 |
| Rotary table (C-axis) Max speed(rpm) | 300 |
| A-axis Max speed(rpm) | 100 |
| Spindle holder type | HSK-T63 |
| A-axis tilt range(deg) | ±110° |
| C-axis rotation range | 360° |
| Max. spindle speed(r/min) | 15000 |
| Machine weight (KG) | 11000 |
| X‑axis travel(mm) | 850 |
| Y-axis travel(mm) | 1040 |
| Z-axis travel(mm) | 600 |
Related Products
LH400 5-Axis Machining Center
U260 5-Axis Machining Center
U400 5-Axis Machining Center
TMC630 5-Axis Machining Center
Frequently Asked Questions
Q: How does the TMC800 compare with the TMC630?
A: The TMC800 is the medium size class in the high-speed TMC range. Compare verified working envelopes and spindle specifications for the job.
Q: How should I assess the spindle for high-speed work?
A: Match its continuous speed range, available power and toolholder requirements to the planned cutters and material. Peak rpm alone is not enough to assess the process.
Q: Which range should I compare if the part also needs turning?
A: Compare the HTMC500T and HTMC800T five-axis turn-mill models. Turning requires a suitable machine configuration in addition to five-axis milling access.
