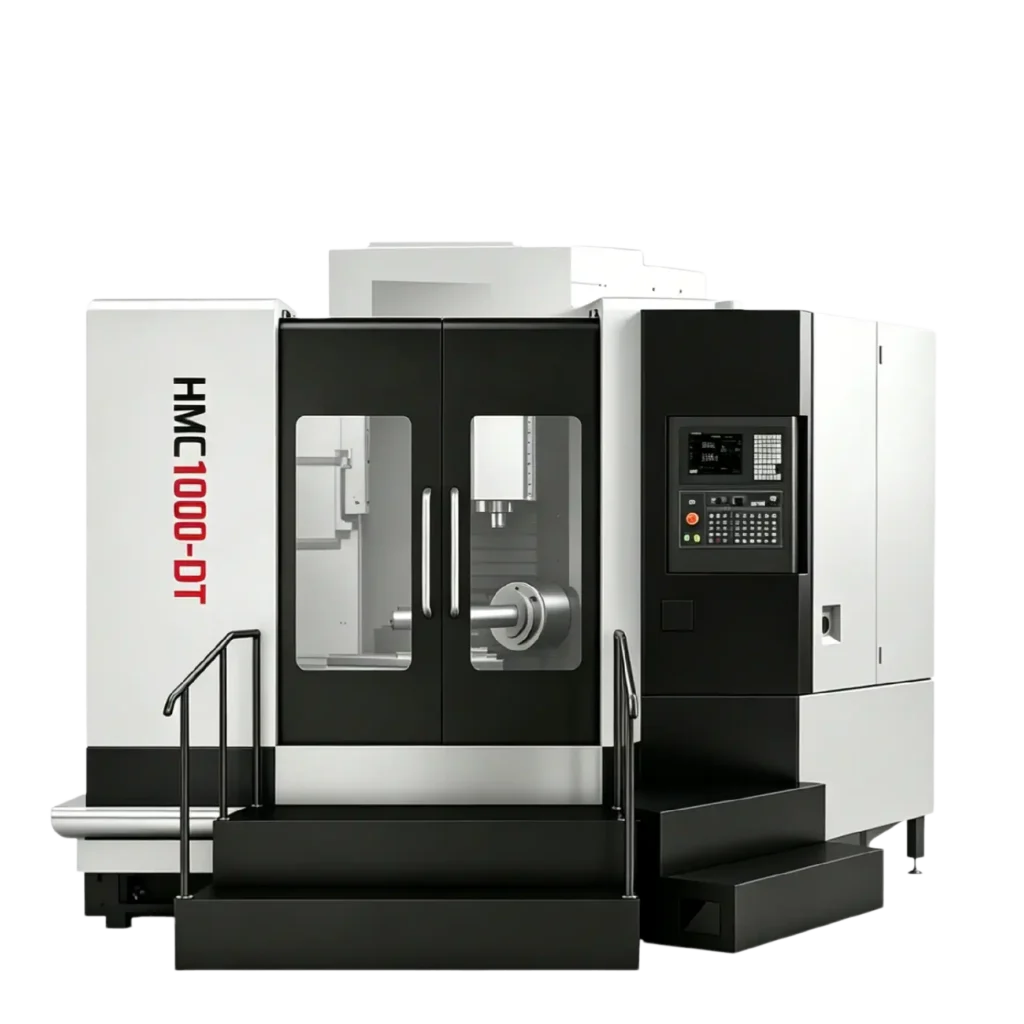

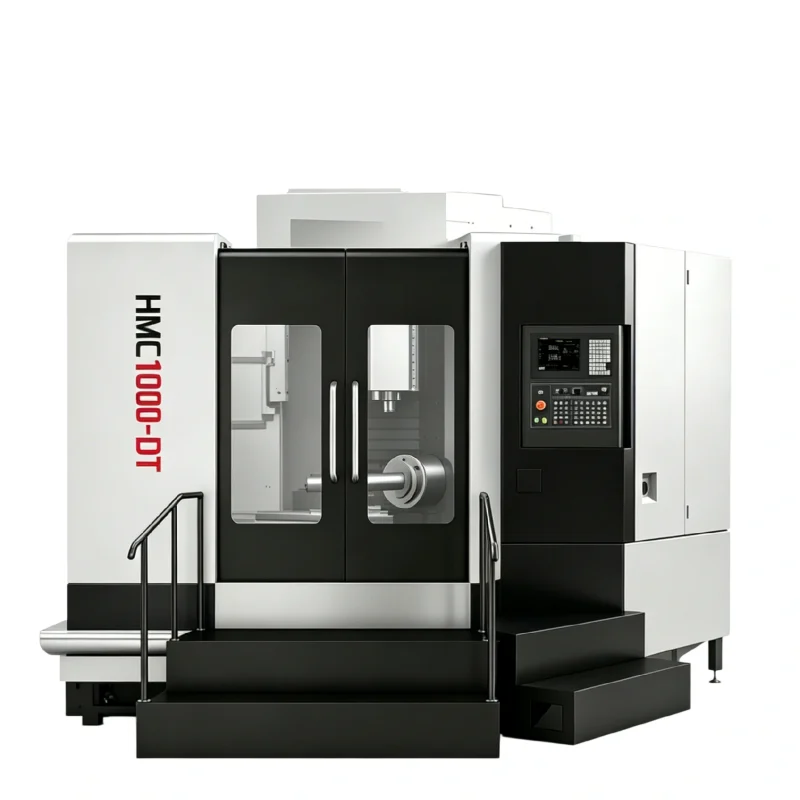

HMC1000-DT
Horizontal Machining Center
- Max. Spindle Speed
6000rpm
- X-axis Travel Distance
1300mm
- Y-axis Travel Distance
1100mm
- Z-axis Travel Distance
1200mm
Machine Introduction
Indroduction
The HMC1000DT horizontal machining center is the large-size high-speed T-type model in this product range. For a larger setup, review clearances throughout the intended machining sequence, including any fixture indexing.
Compare it with HMC800DT using the complete workpiece and fixture arrangement. High-speed positioning should be assessed against the actual spindle, feed and tool-change specifications, as well as the cutting process. Provide your material, operations and target output to request a configuration assessment.
Key Features

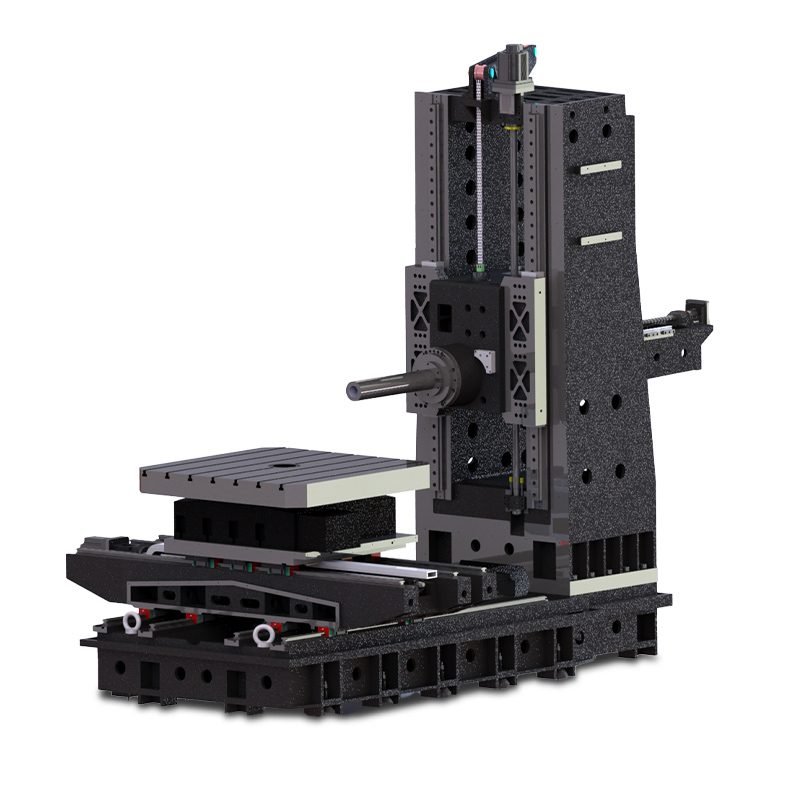

* The structure is divided into boring and milling machine structure, positive T-structure, and inverted T-structure, and suitable structures can be selected according to different needs.
* Suitable for processing products such as box bodies, valve bodies, molds, etc.
* Suitable for processes such as multi face and multi angle machining, boring, and U-shaped brick drilling.
Machine Details
Technical Parameters
| Speicifications | HMC1000-DT |
|---|---|
| Table size (mm) | 1000×1000 |
| Max. worktable load(kg) | 3500 |
| X-axis travel(mm) | 1300 |
| Y-axis travel(mm) | 1100 |
| Z-axis travel(mm) | 1200 |
| X-axis Fast shift speed(m/min) | 15 |
| Y-axis Fast shift speed(m/min) | 12 |
| Z-axis Fast shift speed(m/min) | 15 |
| Spindle taper hole | BT50 Φ190 |
| Spindle speed (rpm) | 6000 |
| Machine weight (KG) | 18000 |
Related Products
TH500 Horizontal Machining Center
HMC630DT Machining Center
TH1000S Horizontal Machining Center
HMC800S-DT Machining Center
Frequently Asked Questions
Q: What distinguishes the HMC1000DT in the DT range?
A: It is the large-size high-speed T-type model. Confirm the actual travel and loading limits for the complete setup.
Q: Does high-speed machining guarantee a shorter cycle?
A: No. Tool engagement, tool changes, positioning, loading and inspection all contribute to the complete production cycle. Use a representative job for comparison.
Q: Is deep-bore capability specified for the HMC1000DT?
A: This DT model is positioned for high-speed machining. If deep-bore work is central to the job, also compare the S and SDT models against the required reach.
