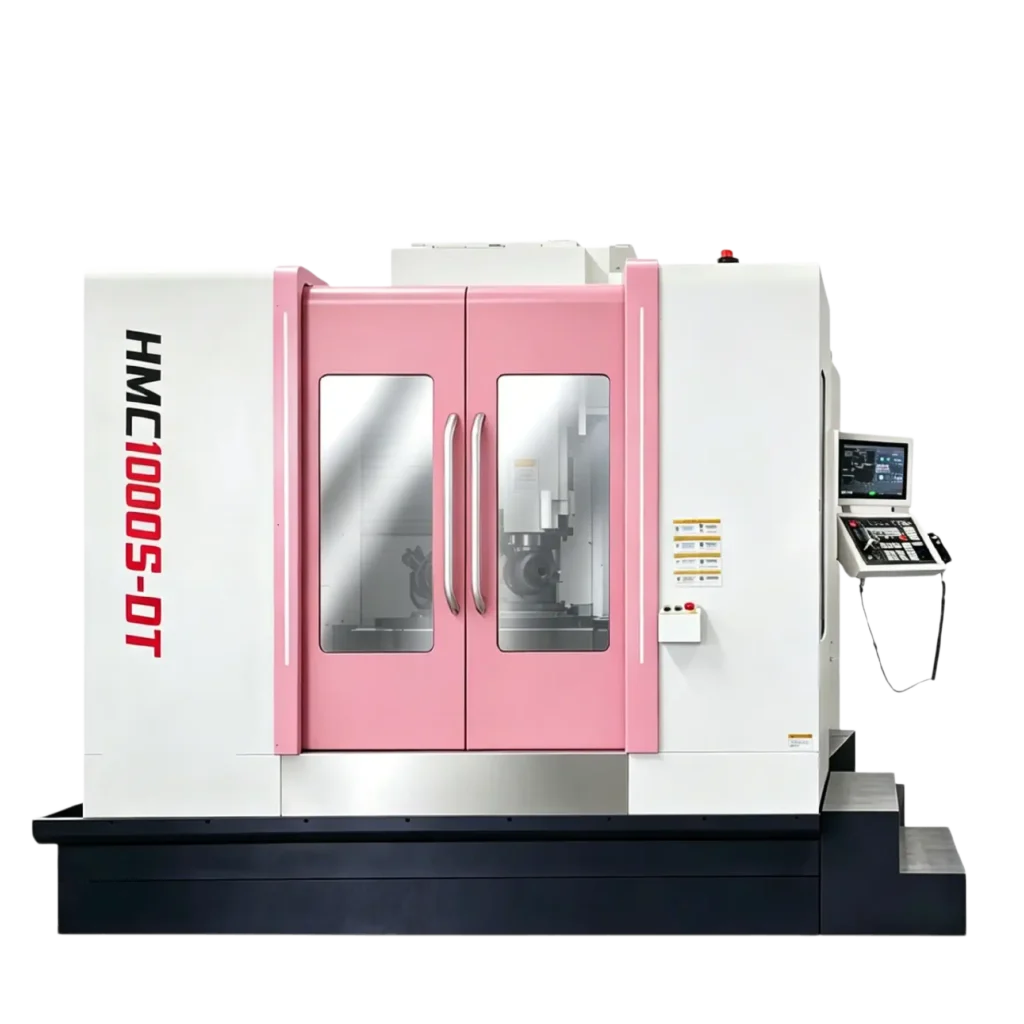

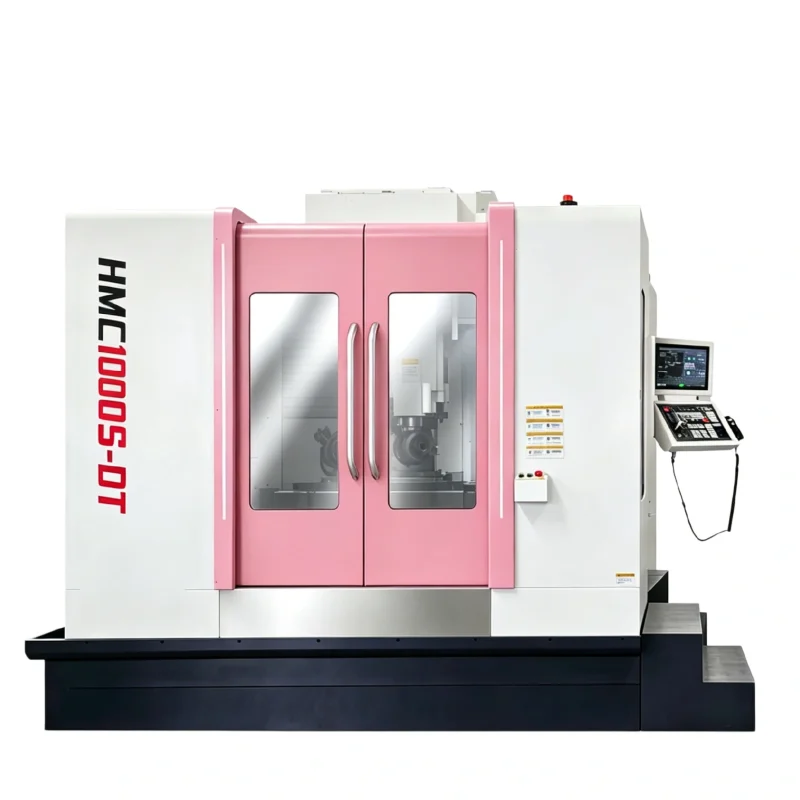

HMC1000S-DT
Horizontal Machining Center
- Max. Spindle Speed
6000rpm
- X-axis Travel Distance
1800mm
- Y-axis Travel Distance
1000mm
- Z-axis Travel Distance
1300mm
Machine Introduction
Introduction
The HMC1000SDT deep hole machining center is the large-size T-type model for boring and milling applications. This is the large-size T-type deep-bore model to compare when the required setup exceeds the smaller SDT size class.
Bore depth alone does not establish whether a job is feasible. Diameter, access, tool support, chip removal and required finish must be assessed together. Compare the HMC800SDT where a different size class may be appropriate. Send a section drawing showing bore geometry and tolerances to discuss the machining approach.
Key Features
*Spindle taper hole BT50-45°, spindle speed 3000 rpm
*X/Y/Z axis travel: 1800/1000/1300 mm, X-axis rapid shift 14 m/min, Y-axis 12 m/min, Z-axis 14 m/min
*Machine weight 16000 kg

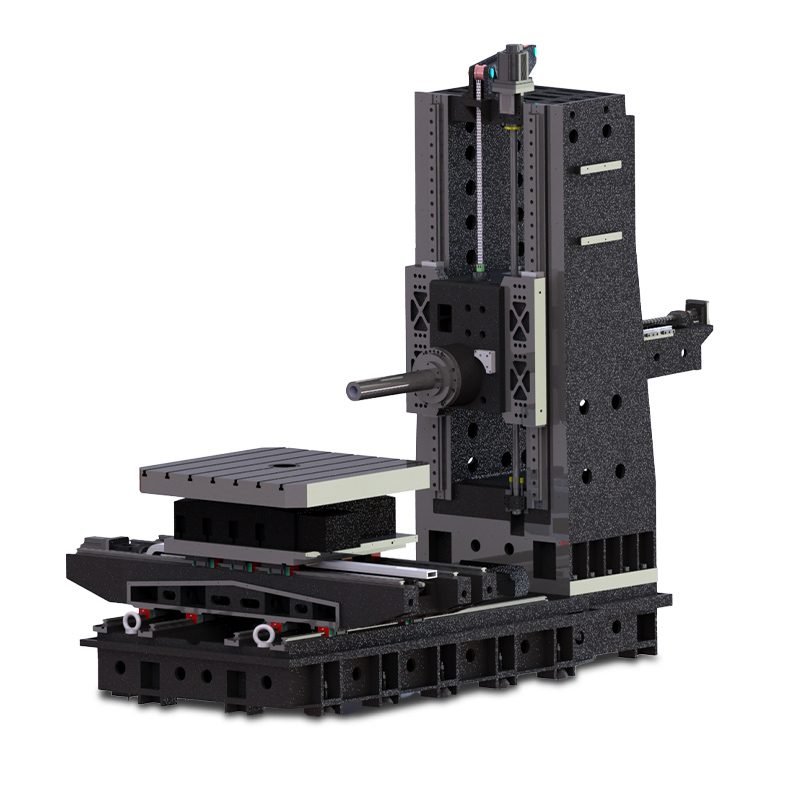

Machine Details
Technical Parameters
| Speicifications | HMC1000S-DT |
|---|---|
| Table size (mm) | 1000×1000 |
| Max. worktable load(kg) | 4000 |
| X-axis travel(mm) | 1800 |
| Y-axis travel(mm) | 1000 |
| Z-axis travel(mm) | 1300 |
| X-axis Fast shift speed(m/min) | 14 |
| Y-axis Fast shift speed(m/min) | 12 |
| Z-axis Fast shift speed(m/min) | 14 |
| Spindle taper hole | BT50 -45 degree |
| Spindle speed (rpm) | 6000 |
| Machine weight (KG) | 16000 |
Related Products
TH500 Horizontal Machining Center
HMC630DT Machining Center
TH1000S Horizontal Machining Center
HMC800S-DT Machining Center
Frequently Asked Questions
Q: How does the HMC1000SDT compare with the HMC800SDT?
A: Both belong to the T-type SDT deep-bore range. The HMC1000SDT is the large size class; compare actual travel, reach and load limits for your setup.
Q: Is deep-hole boring the same as gun drilling?
A: No. Boring enlarges an existing hole; gun drilling creates deep holes with a specialized drilling process. Do not assume a deep-bore model includes a gun-drilling system.
Q: Can maximum bore depth be stated without a tool setup?
A: A useful capability statement needs bore diameter, tooling, extension, material and quality requirements. Ask for an assessment of the complete bore rather than depth alone.
