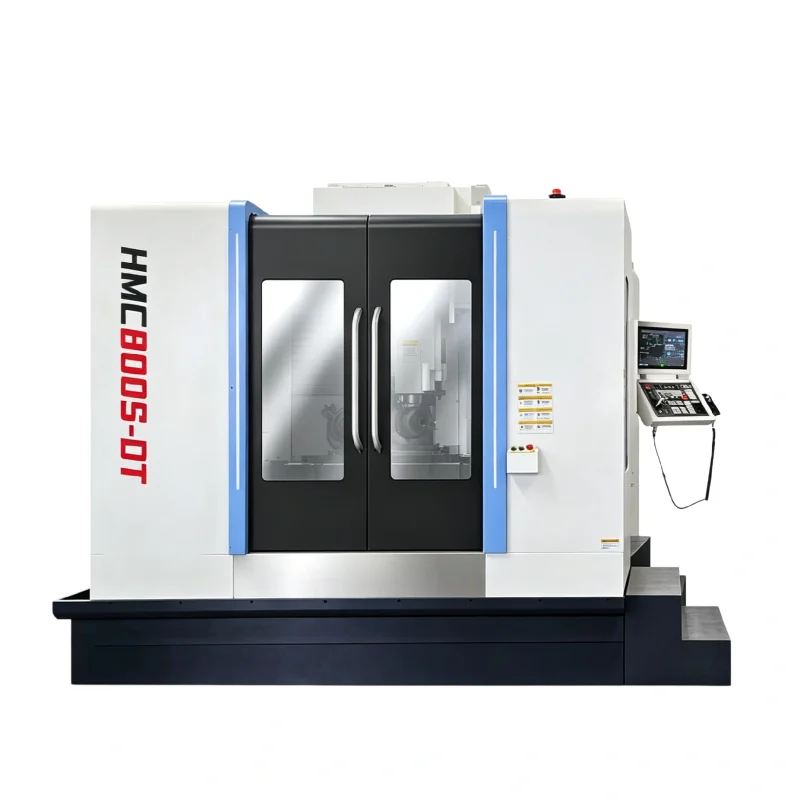

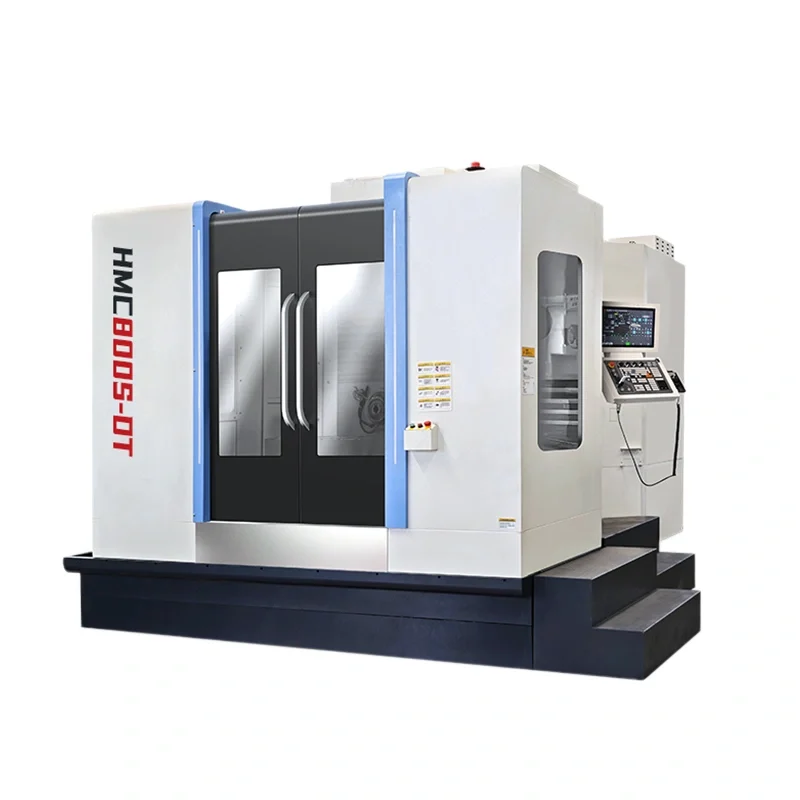

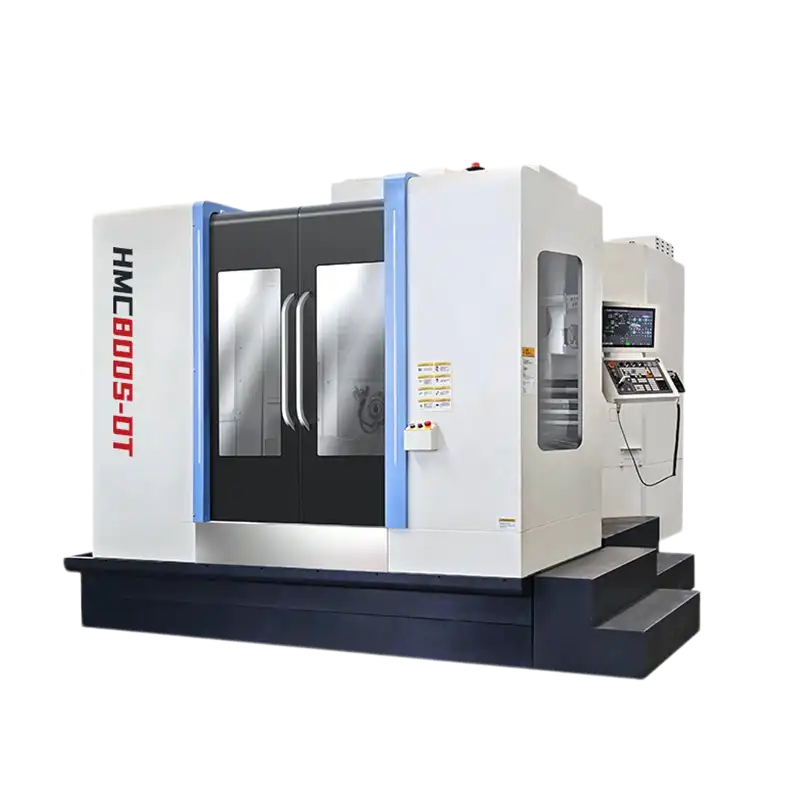

HMC800SDT
Horizontal Machining Center
- Max. Spindle Speed
6000rpm
- X-axis Travel Distance
1400mm
- Y-axis Travel Distance
1000mm
- Z-axis Travel Distance
1000mm
Machine Introduction
Introduction
The HMC800SDT deep hole machining center is the small-size T-type model for boring and milling applications. This is the small-size T-type deep-bore model, providing a different process focus from the high-speed DT range.
Bore depth alone does not establish whether a job is feasible. Diameter, access, tool support, chip removal and required finish must be assessed together. Compare the HMC1000SDT where a different size class may be appropriate. Send a section drawing showing bore geometry and tolerances to discuss the machining approach.
Key Features
*Spindle taper hole BT50-45°
*X/Y/Z axis travel: 1300/1000/1000 mm, X-axis rapid shift 15 m/min, Y/Z rapid shift 12 m/min
*Machine size 6800×3400×4500 mm, machine weight 15500 kg
Machine Details
Technical Parameters
| Speicifications | HMC800S-DT |
|---|---|
| Table size (mm) | 800×800 |
| Max. worktable load(kg) | 2000 |
| X-axis travel(mm) | 1300 |
| Y-axis travel(mm) | 1000 |
| Z-axis travel(mm) | 1000 |
| X-axis Fast shift speed(m/min) | 15 |
| Y-axis Fast shift speed(m/min) | 12 |
| Z-axis Fast shift speed(m/min) | 12 |
| Spindle taper hole | BT50 -45 degree |
| Spindle speed (rpm) | 6000 |
| Machine weight (KG) | 15500 |
Related Products
TH500 Horizontal Machining Center
HMC630DT Machining Center
TH1000S Horizontal Machining Center
HMC1000S-DT Machining Center
Frequently Asked Questions
Q: How does the HMC800SDT compare with the HMC1000SDT?
A: Both belong to the T-type SDT deep-bore range. The HMC800SDT is the small size class; compare actual travel, reach and load limits for your setup.
Q: Is deep-hole boring the same as gun drilling?
A: No. Boring enlarges an existing hole; gun drilling creates deep holes with a specialized drilling process. Do not assume a deep-bore model includes a gun-drilling system.
Q: Can maximum bore depth be stated without a tool setup?
A: A useful capability statement needs bore diameter, tooling, extension, material and quality requirements. Ask for an assessment of the complete bore rather than depth alone.
