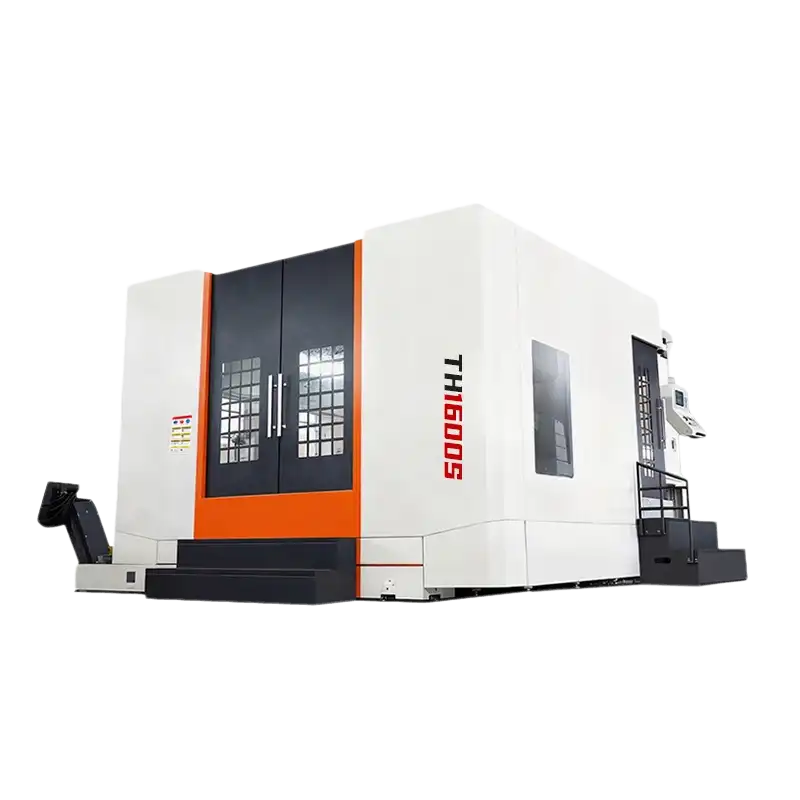

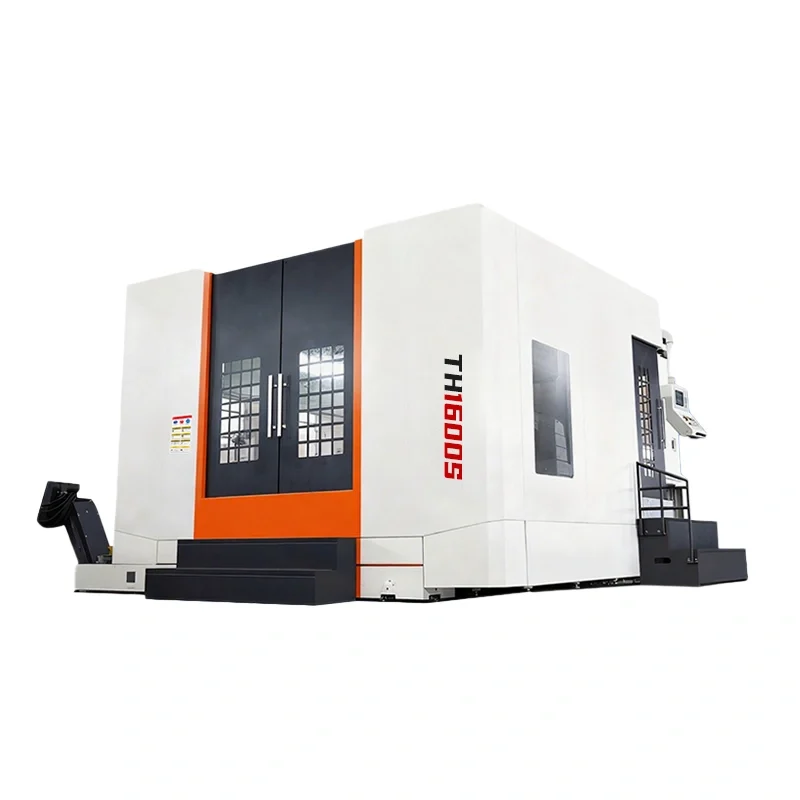

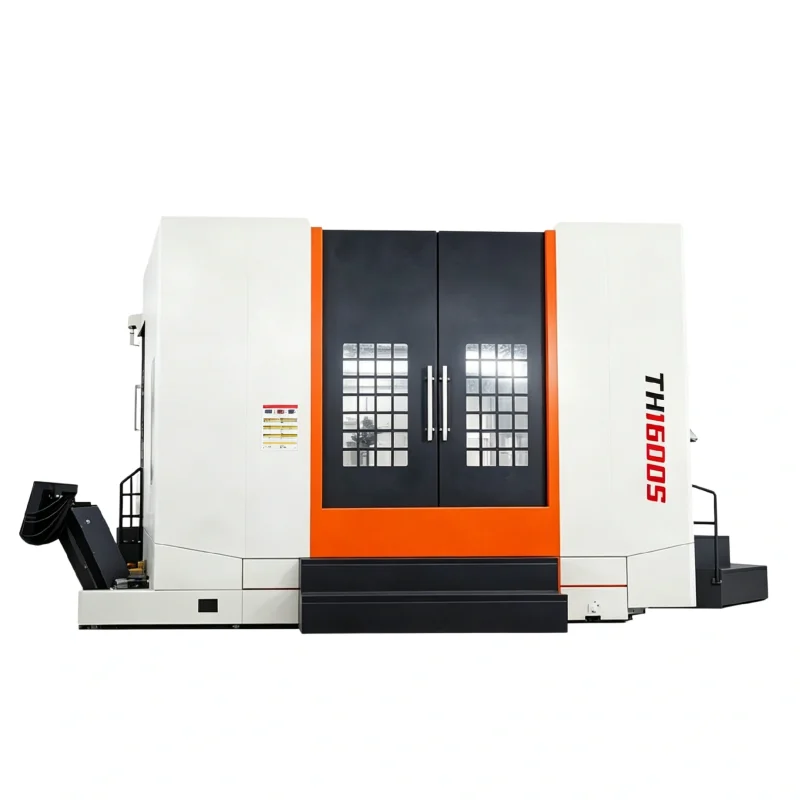

TH1600S
Horizontal Machining Center
- Max. Spindle Speed
1500rpm
- X-axis Travel Distance
2000mm
- Y-axis Travel Distance
1500mm
- Z-axis Travel Distance
1800mm
Machine Introduction
Introduction
The TH1600S horizontal boring and milling center is the large-size S model for deep-bore machining. As the large-size S model, it should be assessed with the full workpiece and fixture envelope as well as the internal bore geometry.
Bore depth alone does not establish whether a job is feasible. Diameter, access, tool support, chip removal and required finish must be assessed together. Compare the TH1000S where a different size class may be appropriate. Send a section drawing showing bore geometry and tolerances to discuss the machining approach.
Key Features
*Spindle taper hole BT50-45°, spindle speed range 1500 r/min
*X/Y/Z axis travel: 2000/1500/1800 mm, X/Y/Z rapid shift 12/12/12 m/min
*Machine weight 24000 kg
Machine Details
Technical Parameters
| Speicifications | TH1600S |
|---|---|
| Table size (mm) | 1600×1600 |
| Max. worktable load(kg) | 10000 |
| X-axis travel(mm) | 2000 |
| Y-axis travel(mm) | 1500 |
| Z-axis travel(mm) | 1800 |
| X-axis Fast shift speed(m/min) | 12 |
| Y-axis Fast shift speed(m/min) | 12 |
| Z-axis Fast shift speed(m/min) | 12 |
| Spindle taper hole | BT50 -45 degree |
| Spindle speed (rpm) | 1500 |
| Machine weight (KG) | 24000 |
Related Products
TH500 Horizontal Machining Center
HMC630DT Machining Center
TH1000S Horizontal Machining Center
HMC800S-DT Machining Center
Frequently Asked Questions
Q: How does the TH1600S compare with the TH1000S?
A: Both belong to the S deep-bore range. The TH1600S is the large size class; compare actual travel, reach and load limits for your setup.
Q: Is deep-hole boring the same as gun drilling?
A: No. Boring enlarges an existing hole; gun drilling creates deep holes with a specialized drilling process. Do not assume a deep-bore model includes a gun-drilling system.
Q: Can maximum bore depth be stated without a tool setup?
A: A useful capability statement needs bore diameter, tooling, extension, material and quality requirements. Ask for an assessment of the complete bore rather than depth alone.
