TH500
Horizontal Machining Center
- Max. Spindle Speed
6000rpm
- X-axis Travel Distance
1100mm
- Y-axis Travel Distance
750mm
- Z-axis Travel Distance
650mm
Machine Introduction
Introduction

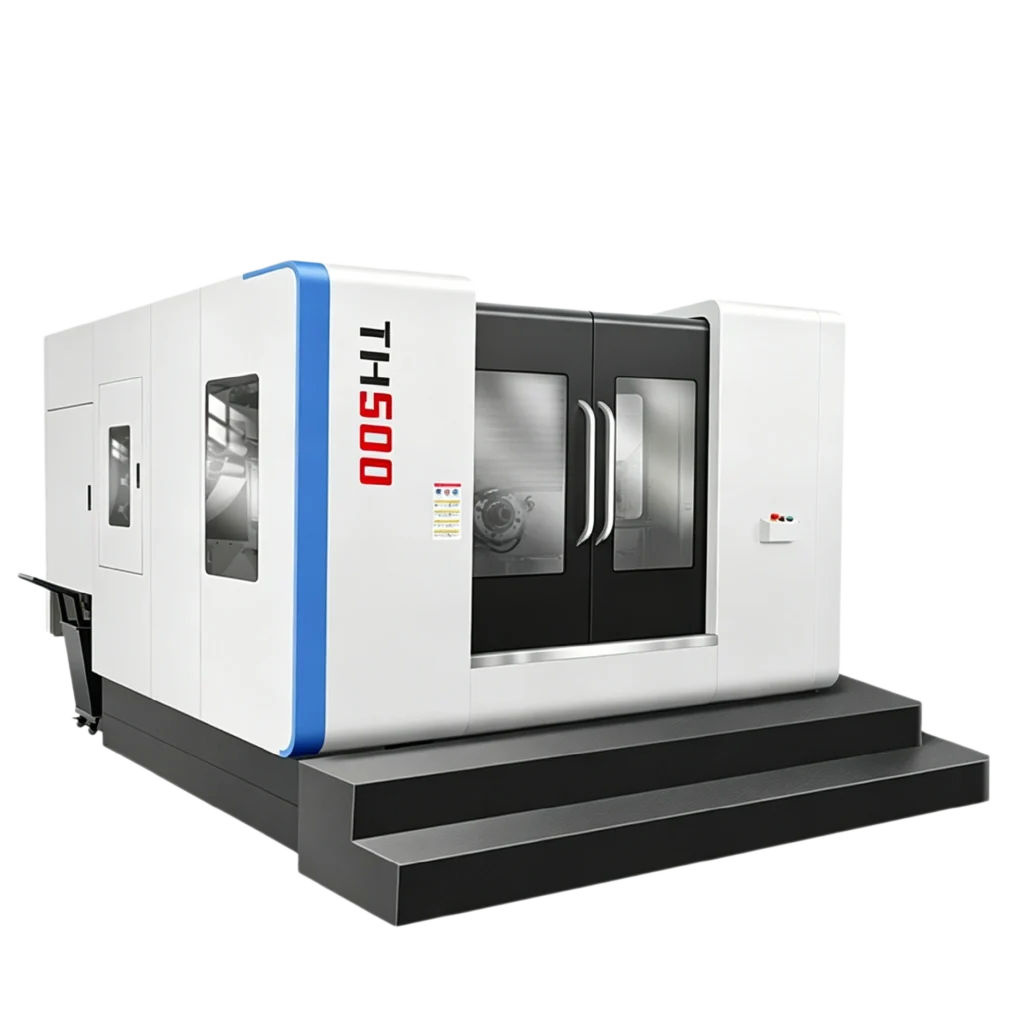

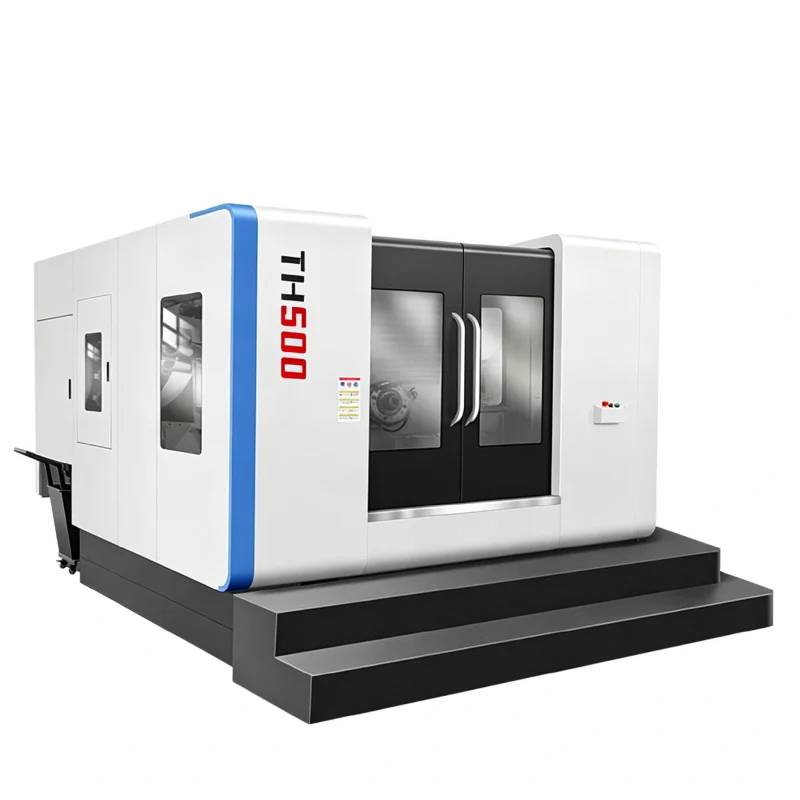

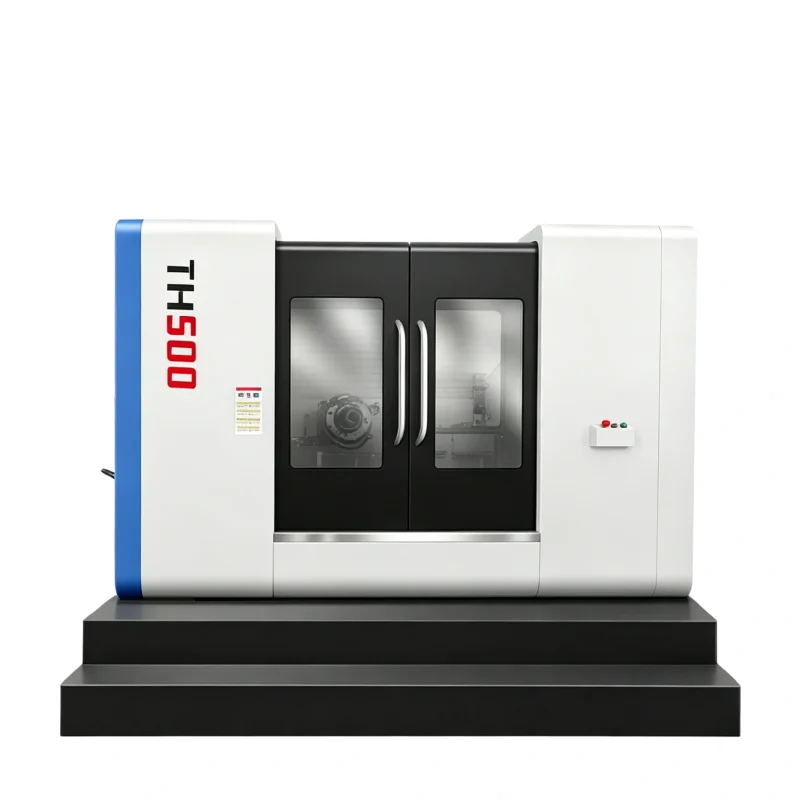

The TH500 is a compact horizontal boring and milling machine in the small size class. Its positioning suits buyers comparing boring and milling equipment where both part access and installation space matter.
Use the full fixture and tool arrangement to check the work envelope. Bore depth, cutter overhang and the location of machined faces can influence selection as much as the overall part size. Compare the TH1000 if you need the larger size class, and provide your bore and setup drawings when requesting a TH500 proposal.
Key Features
*Table size 1200×600 mm, max. worktable load 800 kg, T-slot 5-18-100 mm
*Spindle taper hole BT40φ150
*X/Y/Z axis travel: 1100/750/650 mm, X-axis rapid shift 24 m/min, Y-axis 18 m/min, Z-axis 24 m/min
*Machine size 3400×2750×2900 mm, machine weight 7200 kg
Machine Details
Technical Parameters
| Speicifications | TH500 |
|---|---|
| Table size (mm) | 1200×600 |
| Max. worktable load(kg) | 800 |
| X-axis travel(mm) | 1000 |
| Y-axis travel(mm) | 750 |
| Z-axis travel(mm) | 850 |
| X-axis Fast shift speed(m/min) | 24 |
| Y-axis Fast shift speed(m/min) | 18 |
| Z-axis Fast shift speed(m/min) | 24 |
| Spindle taper hole | BT40 Φ150 |
| Spindle speed (rpm) | 8000 |
| Machine size (mm) | 3400L*2750W*2900H |
| Machine weight (KG) | 7200 |
Related Products
TH1000 Horizontal Machining Center
HMC630DT Machining Center
TH1000S Horizontal Machining Center
HMC800S-DT Machining Center
Frequently Asked Questions
Q: How does the TH500 compare with the TH1000?
A: Both are compact horizontal boring and milling models. The TH500 is the smaller size class and the TH1000 the larger one in this product range.
Q: What should I check for a space-limited installation?
A: Request the layout drawing and allow for service access, loading, chip handling and utilities, in addition to the machine enclosure.
Q: Which bore information is useful for selection?
A: Provide bore diameter, depth, location, tolerance and access direction, together with the blank and fixture dimensions.
