HTMC630
Horizontal Machining Center
- Max. Spindle Speed
6000rpm
- X-axis Travel Distance
1050mm
- Y-axis Travel Distance
800mm
- Z-axis Travel Distance
850mm
Machine Introduction
Introduction
The HTMC630 is an automated horizontal machining center with a multi-station configuration. Its selection focus is the production sequence across stations, alongside the machining requirements of each part.
Define how parts will be loaded, located, machined and checked before specifying an automated system. Station count and handling arrangements should be confirmed in the proposed configuration. Compare the HTMC630ZT if the workpiece and fixture require the higher table-load version. Provide your cycle sequence and output target to discuss an HTMC630 production proposal.
Key Features
*Spindle taper hole BT50φ190, spindle speed 6000 rpm
*X/Y/Z axis travel: 1050/800/850 mm, X rapid shift 18 m/min, Y/Z rapid shift 15 m/min
Machine Details
Technical Parameters
| Speicifications | HTMC630 |
|---|---|
| Table size (mm) | 630×630 |
| Max. worktable load(kg) | 500 |
| X-axis travel(mm) | 1050 |
| Y-axis travel(mm) | 800 |
| Z-axis travel(mm) | 850 |
| X-axis Fast shift speed(m/min) | 18 |
| Y-axis Fast shift speed(m/min) | 15 |
| Z-axis Fast shift speed(m/min) | 15 |
| Spindle taper hole | BT50Φ190 |
| Spindle speed (rpm) | 6000 |
| Machine weight (KG) | 15500 |
Related Products
TH500 Horizontal Machining Center
HMC630DT Machining Center

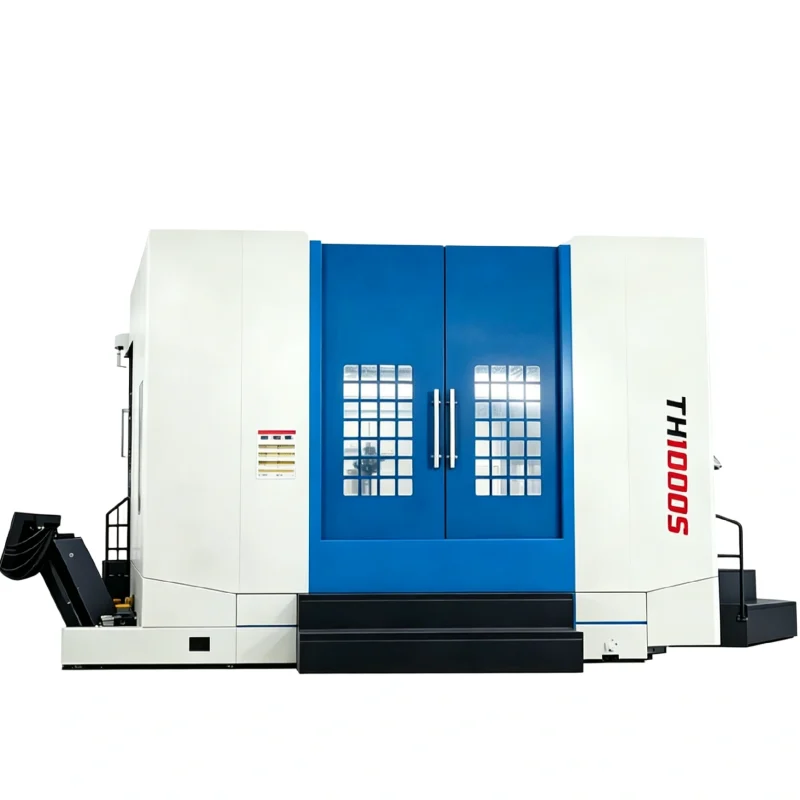

TH1000S Horizontal Machining Center
HMC800S-DT Machining Center
Frequently Asked Questions
Q: Does multi-station mean a pallet pool is included?
A: Not necessarily. Multi-station describes the machine concept. Confirm the actual station, pallet and transfer arrangement in the quotation.
Q: What should an automation inquiry include?
A: Include the part mix, loading method, operations, inspection steps, changeover needs and target output. These define the required production sequence.
Q: How does the HTMC630 differ from the HTMC630ZT?
A: The ZT version is listed with a higher table load. Compare the rated loads and operating conditions for your fixture and workpiece.
