TCK70Y
CNC Mill-Turn Machine
- Max. Turning Length
1000mm
- Y-axis Travel Distance
±75mm
- X-axis Travel Distance
300mm
- Z-axis Travel Distance
1020mm
Machine Introduction
Introduction
The TCK70Y Y axis turn mill machine is the large-size model with a driven-tool turret. Compare it for parts that combine turned geometry with milled or drilled features.
The Y-axis and driven tools provide a basis for assessing off-center operations, subject to the actual travel, holders and CNC functions. Map each feature to its required tool approach and check clearance around the clamped part. Compare the TCK6050Y for the alternative size class and send your complete operation list with the inquiry.
Key Features
* Customized Mohs 5# spindle structure tailstock ,resulting in higher machining accuracy
* The spindle structure has better rigidity at the top and a longer service life.
Machine Details
Technical Parameters
| Speicifications | TCK70Y-1000 |
|---|---|
| Max. turning diameter on bed(mm) | 720 |
| Max. cutting length(mm) | 1000 |
| Max. cutting diameter(mm) | 480 |
| Spindle motor power(KW) | 37 |
| Spindle speed range(r/min) | 3000 |
| Spindle nose type / code | A2-8 |
| Spindle hole diameter(mm) | 85 |
| X/Y/Z-axis fast movement speed(mm) | 12/12/16 |
| Standard knife holder form | 12 station power knife tower |
| Y‑axis travel(mm) | ±75 |
| X-axis travel(mm) | 300 |
| Z-axis travel(mm) | 1020 |
| Machine size (mm) | 3950L*2160W*2485H |
| Machine weight (KG) | 8000 |
Related Products

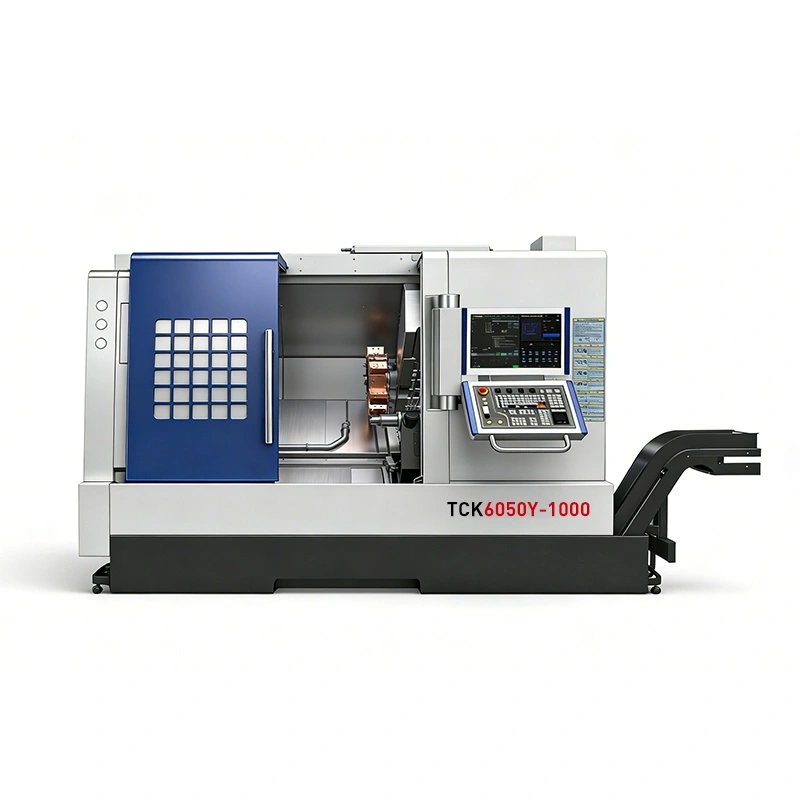

TCK6050Y CNC Mill-Turn Machine
TCK2300B CNC Mill-Turn Machine
TCK6050SY CNC Mill-Turn Machine
HTMC500T CNC Mill-Turn Machine
Frequently Asked Questions
Q: What machining features does the TCK70Y provide?
A: It has a Y-axis and driven-tool turret for combined turning and milling requirements. Match usable travel, tool speed, power and CNC functions to the features on your part.
Q: Does live tooling replace every separate milling operation?
A: No. Feasibility depends on tool access, milling loads, travel and the required geometry. Review the complete part process before combining operations.
Q: How should I compare it with the TCK6050Y?
A: The TCK70Y is the large size class. Check the actual turning and milling envelopes, since milling access may impose a different limit from turning capacity.
