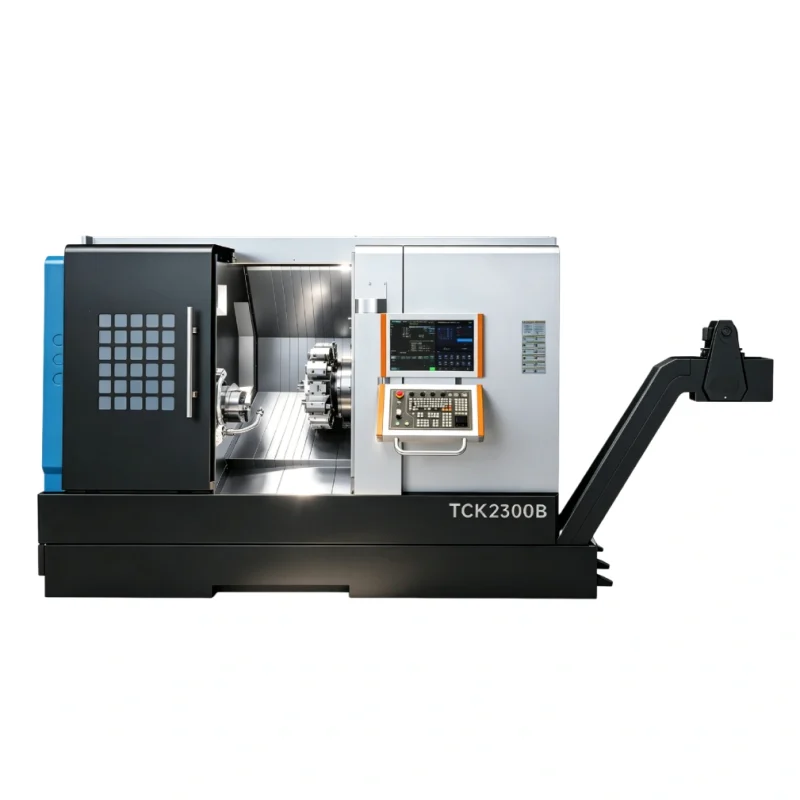

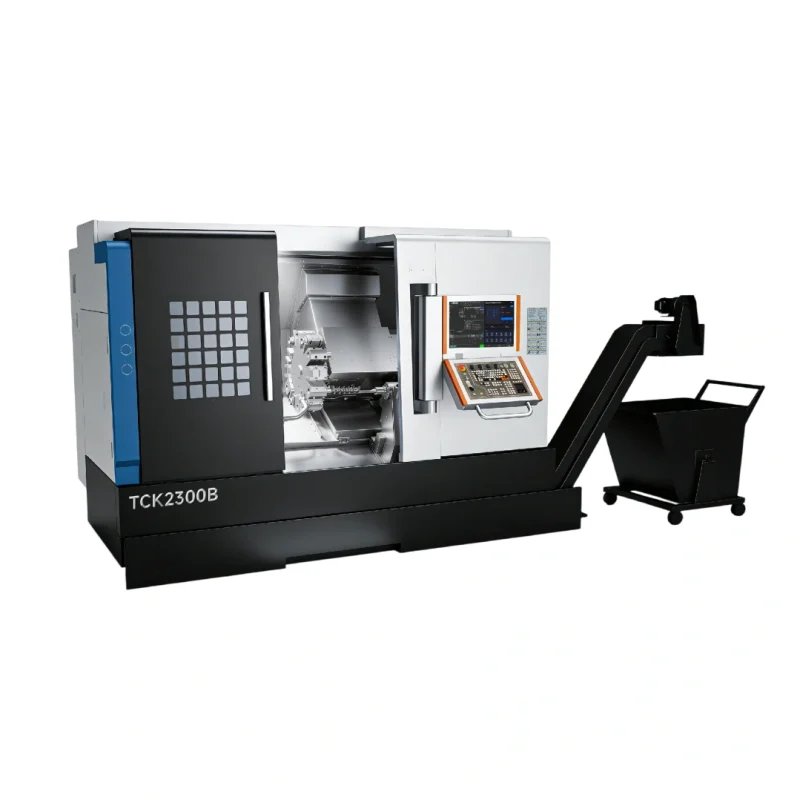

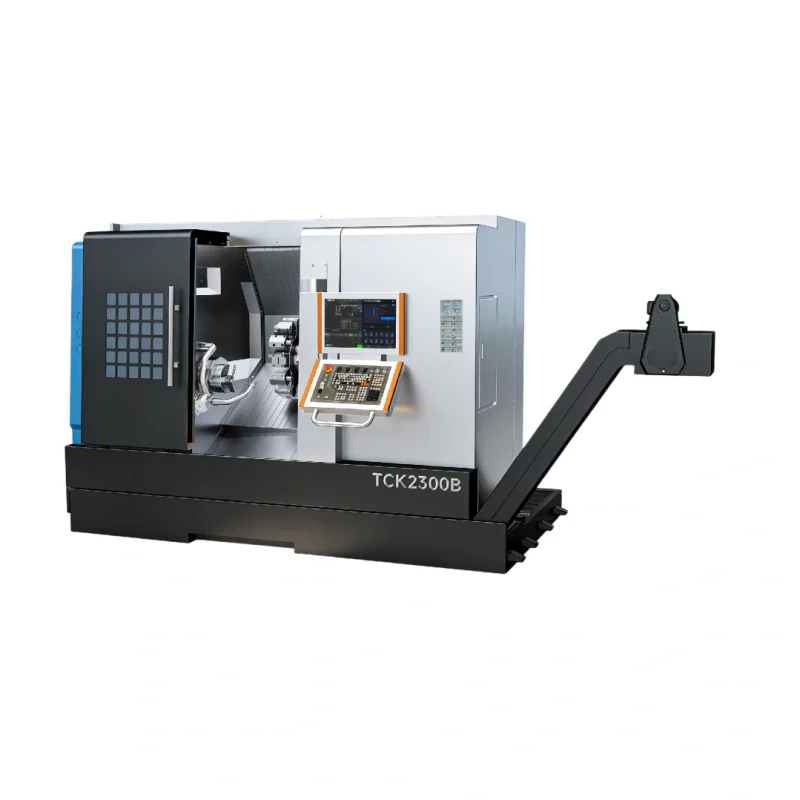

TCK2300B
CNC Mill-Turn Machine
- Max. Turning Length
400mm
- Y-axis Travel Distance
±60mm
- X-axis Travel Distance
240mm
- Z-axis Travel Distance
500mm
Machine Introduction
Introduction
The TCK2300B Y axis turn mill machine is a medium-size model for combined turning and milling requirements. It is an additional model to compare when a part requires turning together with features that need a milling operation.
Evaluate the feature positions against usable Y-axis travel and tool access. Confirm the driven-tool arrangement and CNC functions in the proposed specification before defining the process. Compare the TCK6050Y using configuration details, not the model suffix, and submit the part drawing with a list of required operations.
Key Features
*Spindle nose type 400, spindle bore 65 mm, max bar capacity 50 mm
*X-axis travel 240 mm, Z-axis travel 500 mm, Y-axis travel ±60 mm, X/Z rapid traverse 20/20 m/min, Y rapid traverse 10 m/min
*Standard tool post: Horizontal 12-station live tool turret
Machine Details
Technical Parameters
| Speicifications | TCK2300B |
|---|---|
| Max. swing over bed(mm) | 700 |
| Max. turning length(mm) | 500 |
| Max. turning diameter(mm) | 400 |
| Max. swing over cross slide(mm) | 400 |
| Spindle nose type / code | A2-6 |
| Spindle bore diameter(mm) | 65 |
| Max. bar capacity(mm) | 50 |
| Y-axis rapid traverse(m/min) | 10 |
| X-axis rapid traverse(m/min) | 20 |
| Z-axis rapid traverse(m/min) | 20 |
| Y‑axis travel(mm) | ±60 |
| X-axis travel(mm) | 240 |
| Z-axis travel(mm) | 500 |
| Standard tool post type | Horizontal 12‑station live tool turret |
Related Products
TCK70Y CNC Mill-Turn Machine

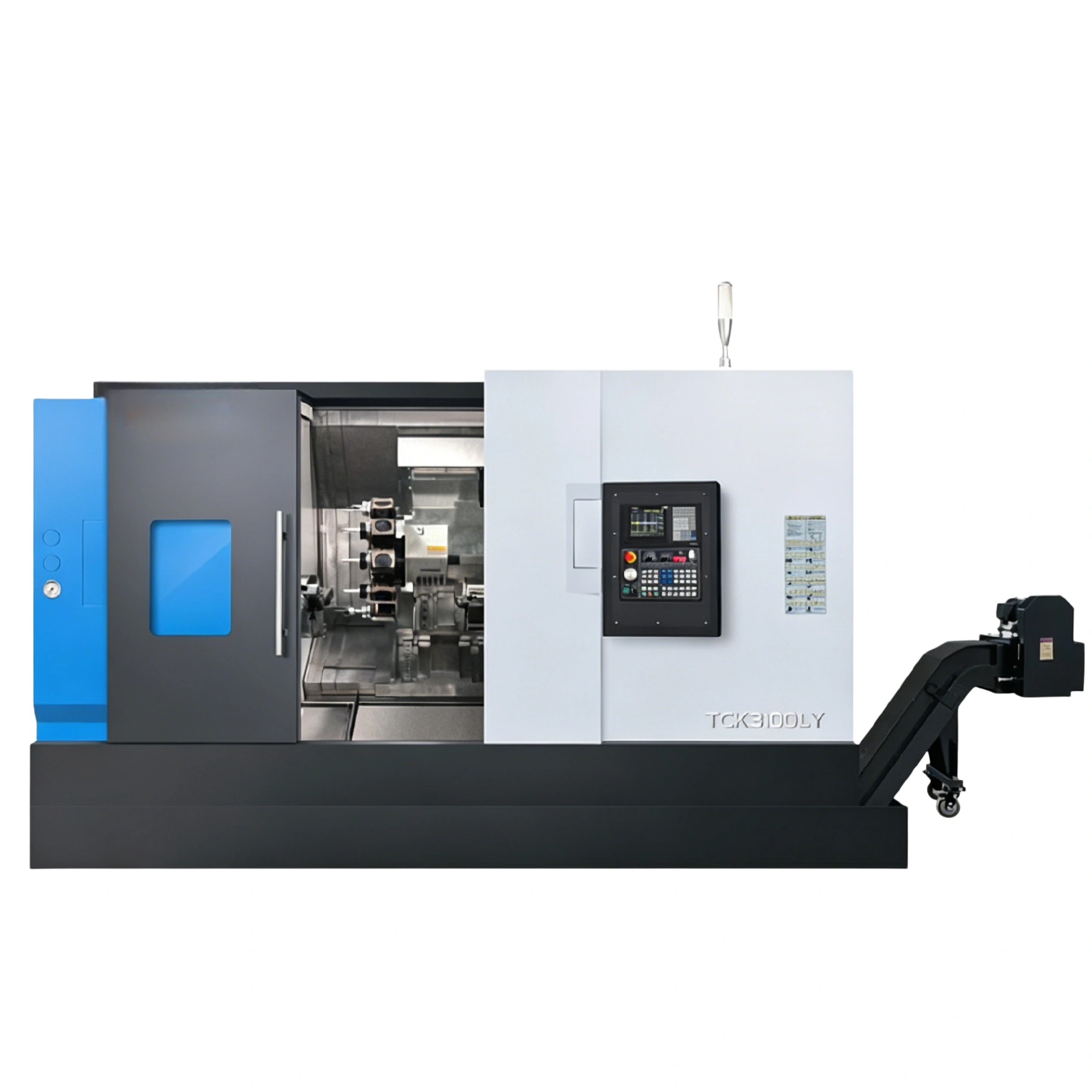

TCK3100LY CNC Mill-Turn Machine
TCK6050SY CNC Mill-Turn Machine
HTMC500T CNC Mill-Turn Machine
Frequently Asked Questions
Q: Which tooling details should I review for milling?
A: Check the driven-tool arrangement, toolholder interface, speed and power against your milling operations. These details matter alongside Y-axis travel and feature access.
Q: Can the model suffix be used to infer turning length?
A: No. Confirm maximum turning length and the usable envelope with the intended chucking and tools.
Q: What should I compare with the TCK6050Y?
A: Compare actual turning capacity, Y travel, driven-tool capability and CNC functions. Size class alone is not enough to select between the models.
