TCK6050D
CNC Slant Bed Lathe
- Max. Turning Length
500mm
- Max. Turning Diameter
410mm
- X-axis Travel Distance
280mm
- Z-axis Travel Distance
630mm
Machine Introduction
Introduction
The TCK6050D precision CNC lathe is a medium-size slant bed model for precision-focused turning requirements. For repeat production, specify how and when critical dimensions will be inspected.
Machine accuracy and finished-part results should be evaluated separately. Cutting tools, thermal conditions, workholding and inspection all affect the result. Compare the TCK6350D using verified specifications, since both share the same size and precision positioning in this product range. Provide a drawing with critical tolerances to request a technical comparison.
Key Features
*Spindle nose type A2-6, spindle bore 65 mm, max bar capacity 50 mm, spindle motor output power 11/15 kW
*X-axis travel 280 mm, Z-axis travel 630 mm (500) / 1120 mm (1000), X/Z rapid traverse 15/15 m/min
*Tailstock travel 450 mm (500) / 900 mm (1000), tailstock quill stroke 100 mm
Machine Details
Technical Parameters
| Speicifications | TCK6050D |
|---|---|
| Max. swing over bed(mm) | 560 |
| Max. turning length(mm) | 550 |
| Max. turning diameter(mm) | 410 |
| Max. swing over cross slide(mm) | 320 |
| Standard turning diameter(mm) | 280 |
| Spindle nose type / code | A2-6 |
| Spindle bore diameter(mm) | 65 |
| Max. bar capacity(mm) | 50 |
| Spindle motor output power(kW) | 11/15 |
| X-axis rapid traverse(m/min) | 15 |
| Z-axis rapid traverse(m/min) | 15 |
| X-axis travel(mm) | 280 |
| Z-axis travel(mm) | 630 |
| Tailstock travel(mm) | 450 |
| Tailstock quill stroke(mm) | 100 |
| Approx. gross weight(KG) | 4000 |
| Machine dimensions(mm) | 3580L*1925W*1966H |
Related Products
TCK50 CNC Slant Bed Lathe
TCK70 CNC Slant Bed Lathe
TCK6350B CNC Slant Bed Lathe

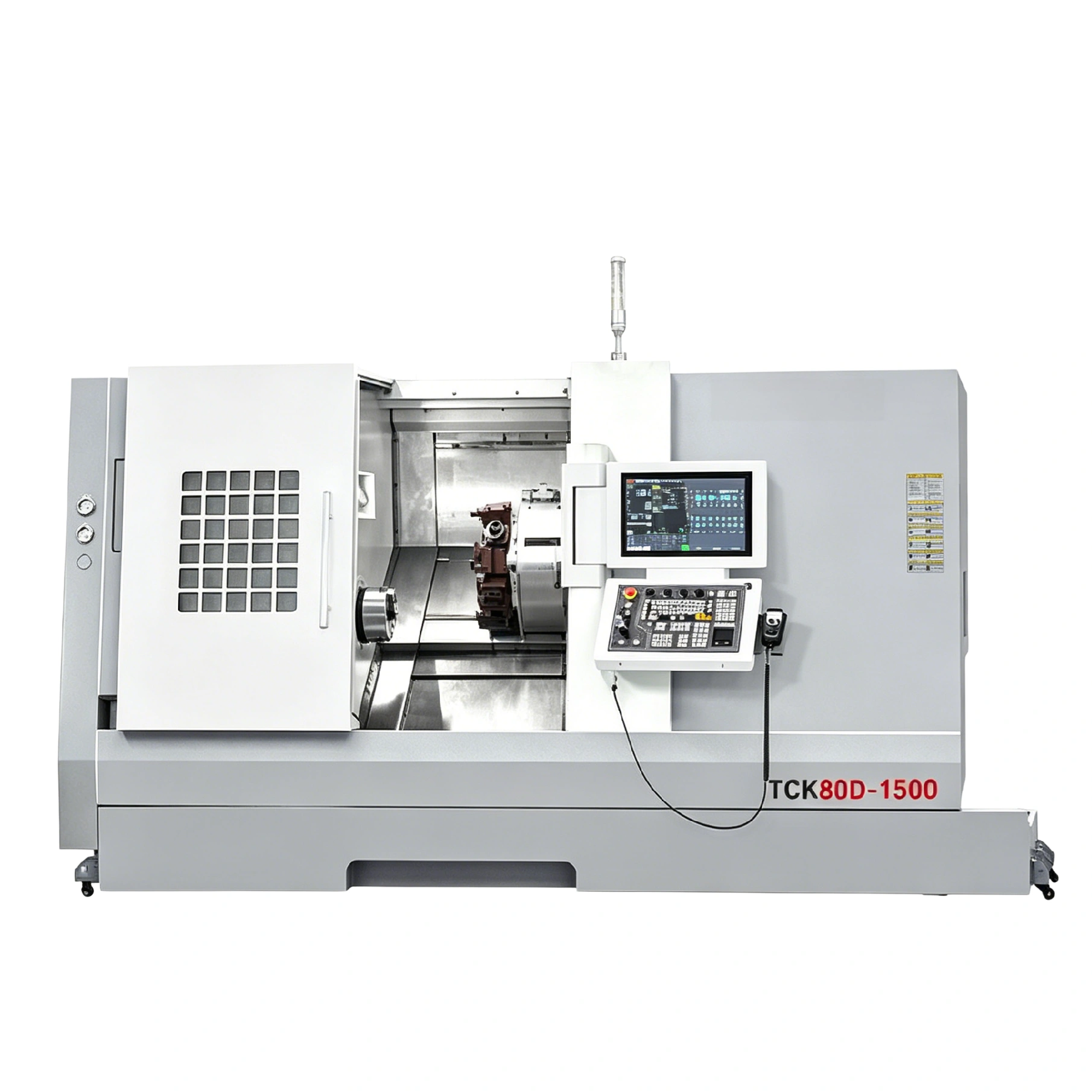

TCK80D CNC Slant Bed Lathe
Frequently Asked Questions
Q: How does the TCK6050D differ from the TCK6350D?
A: Both are listed in the same size and precision class. A meaningful choice requires their specification sheets; the model names alone do not establish a performance difference.
Q: Can a specific tolerance be guaranteed from the precision label?
A: No. Agree on the material, tooling, operating conditions, inspection method and acceptance criteria for the required part.
Q: Which dimensions should be highlighted in an inquiry?
A: Identify tight diameters, lengths, concentric relationships and surface requirements. State how the finished part will be measured.
