TCK6350B
CNC Slant Bed Lathe
- Max. Turning Length
500mm
- Max. Turning Diameter
630mm
- X-axis Travel Distance
270mm
- Z-axis Travel Distance
690mm
Machine Introduction
Introduction
The TCK6350B is a heavy duty slant bed CNC lathe in the medium size class. Compare it with the TCK80B when selecting between the heavy-duty size classes.
Assess the proposed cut at its working speed, rather than judging spindle suitability from peak power alone. Workholding, part support and tooling also affect a turning process under higher cutting loads. Supply the material, stock allowance and intended operations so the TCK6350B can be evaluated against the actual job.
Key Features
*Capable of long-term unilateral cutting of 12mm
*Box type spindle, through-hole 96mm, bar material 85mm
Machine Details
Technical Parameters
| Speicifications | TCK6350B |
|---|---|
| Max. swing over bed(mm) | 630 |
| Max. turning length(mm) | 500 |
| Max. cutting length(mm) | 480 |
| Max. swing over cross slide(mm) | 370 |
| Spindle nose type / code | A2-8 |
| Spindle hole diameter(mm) | 96 |
| Max. bar capacity(mm) | 85 |
| Spindle motor output power(kW) | 18.5 |
| X-axis rapid traverse(m/min) | 15 |
| Z-axis rapid traverse(m/min) | 15 |
| X-axis travel(mm) | 270 |
| Z-axis travel(mm) | 690 |
| Tailstock travel(mm) | 500 |
| Tailstock quill stroke(mm) | 100 |
| Approx. gross weight(KG) | 4300 |
| Machine dimensions(mm) | 3300L*1750W*1890H |
Related Products
TCK50 CNC Slant Bed Lathe
TCK70 CNC Slant Bed Lathe

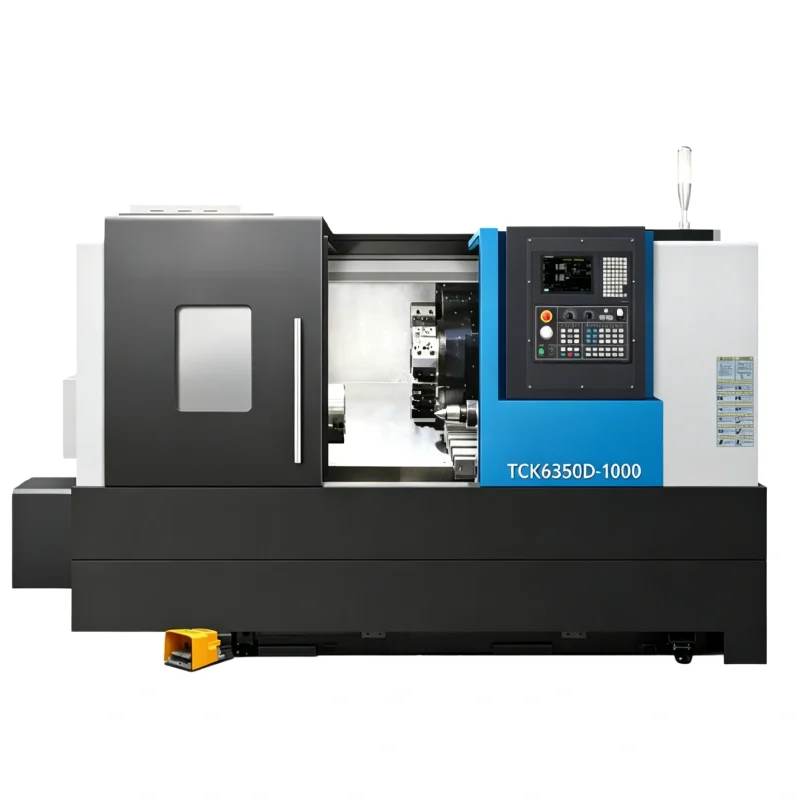

TCK6350D CNC Slant Bed Lathe
TCK6050D CNC Slant Bed Lathe
Frequently Asked Questions
Q: How is the TCK6350B positioned?
A: It is the medium-size model in the heavy-duty B range. This distinguishes it from the standard and precision-focused ranges.
Q: Does heavy-duty identify a particular guideway or gearbox?
A: No. Confirm the guideway, spindle drive and torque specification in the machine documentation. The range description alone does not establish the construction.
Q: Which cutting details help assess spindle suitability?
A: Include the material, cutter or insert, working diameter, speed range and stock removal requirements. Review torque available at the intended cutting speed.
