VMC 855
Vertical Machining Center
- Max. Spindle Speed
8000rpm
- X-axis Travel Distance
800mm
- Y-axis Travel Distance
550mm
- Z-axis Travel Distance
550mm
Machine Introduction
Introduction
The VMC855 vertical machining center is the medium-size standard milling model in this product range. It provides a general milling option between the small VMC650 and large VMC1160 size classes.
Use your typical parts to define the required table space, travel and tooling, then check the specification against occasional larger jobs. For a comparison with the VMC855D, consider whether your priority is general production or high-speed mold machining. Include the material, fixture arrangement and expected output when requesting a VMC855 quotation.
Key Features
(1)Rigid & Robust Build – Heavy-duty structure with a gross weight of 5,300 kg, ensuring excellent stability and vibration damping for tough cutting conditions.
(2)Generous Work Envelope – X/Y/Z travel: 800/550/550 mm; table size: 1000×550 mm, max load 500 kg.
(3)High-Speed – Rapid traverse up to 24/32 m/min (X/Y), 18/24 m/min (Z);
(4)Reliable Spindle & Tool Changer – Belt-driven BT40-150 spindle at 8,000 rpm, paired with a 24-station round disc ATC (2.5 sec tool change time).
(5)Premium Core Components – C3-grade NSK/HIWIN ball screws, SKF/NACHI bearings, SMC pneumatics, and Schneider electrics – built for long-term accuracy and low maintenance.
(6)Flexible Options – Available with through-spindle coolant, oil cooler, chip conveyor, full splash guard, 32T ATC, mist collector, and AI-connected networking for smart manufacturing.
Machine Details
Technical Parameters
| Specifications | VMC855 |
|---|---|
| Table size (mm) | 1000×550 |
| Max. worktable load(kg) | 500 |
| X-axis travel(mm) | 800 |
| Y-axis travel(mm) | 550 |
| Z-axis travel(mm) | 550 |
| X-axis Fast shift speed(m/min) | 32 |
| Y-axis Fast shift speed(m/min) | 32 |
| Z-axis Fast shift speed(m/min) | 24 |
| Spindle taper hole | BT40 Φ150 |
| Spindle speed (rpm) | 8000 |
| Machine size (mm) | 2600L*2380W*2400H |
| Machine weight (KG) | 5300 |
Related Products

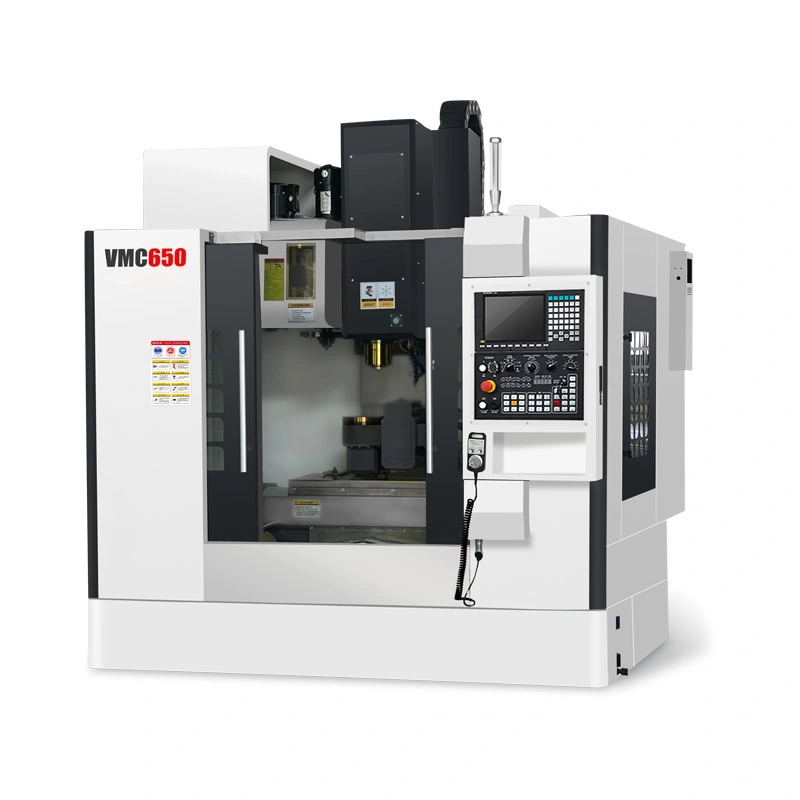

VMC650 Vertical Machining Center
VMC1160 Vertical Machining Center
VMC1370 Vertical Machining Center
VMC855D Vertical Machining Center
Frequently Asked Questions
Q: Should I compare the VMC855 with the VMC855D?
A: Yes, if you are deciding between standard machining and high-speed mold work. The VMC855 is the standard model; the VMC855D is positioned for high-speed mold machining.
Q: Is the VMC855 suitable for every medium-size part?
A: Size class alone is insufficient. Check the blank and fixture against the actual travel, spindle clearance and table load.
Q: What should I include when requesting a production assessment?
A: Include the operations, material, drawing tolerances, batch size and target output. These determine the tooling and process requirements as well as machine size.
