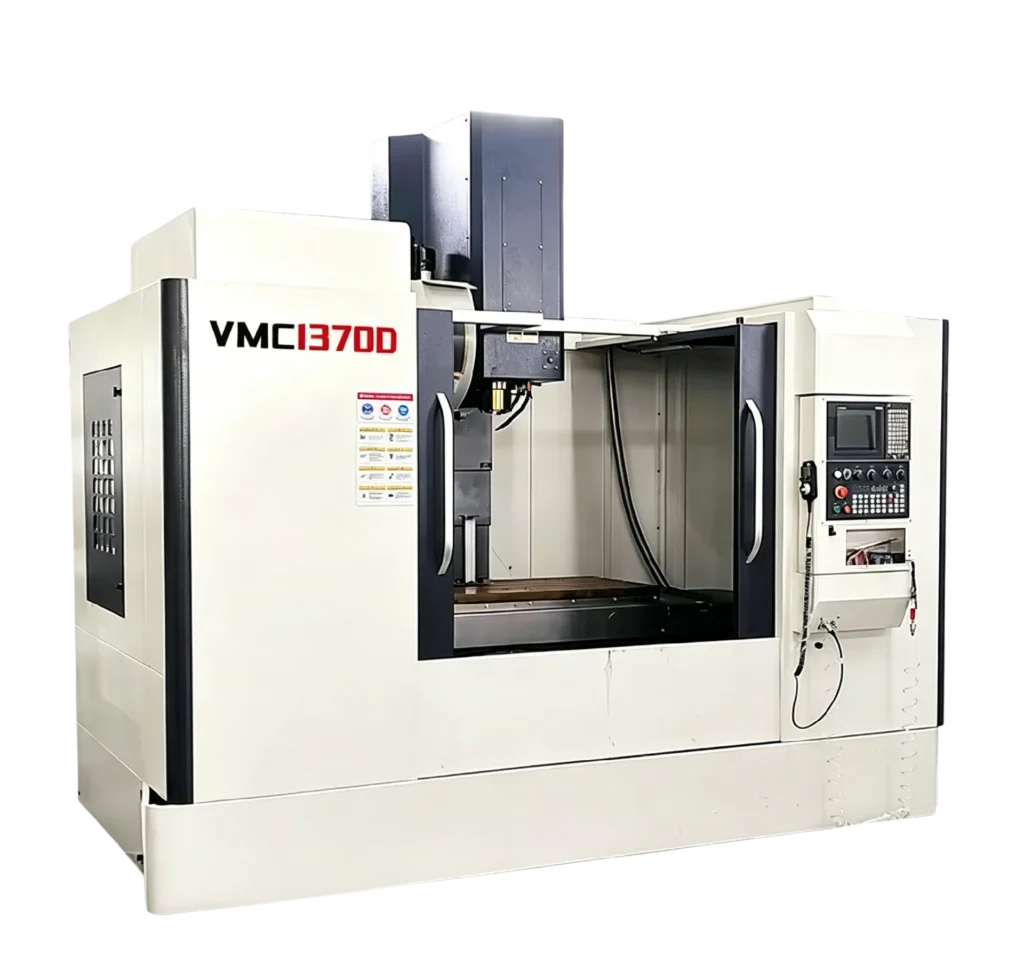

VMC 1370D
Vertical Machining Center
- Max. Spindle Speed
8000rpm
- X-axis Travel Distance
1300mm
- Y-axis Travel Distance
700mm
- Z-axis Travel Distance
750mm
Machine Introduction
Introduction
The VMC1370D mold machining center is the large-size high-speed VMC for mold work in this product range. Compare it with the VMC855D when your mold and fixture call for a larger setup.
Check more than the mold footprint. Fixture height, cutter reach and access to deep or inclined features affect whether the complete job can be machined as planned. Separate roughing and finishing requirements when discussing spindle and tooling needs. Share the mold drawing and process expectations to request a VMC1370D proposal.
Key Features

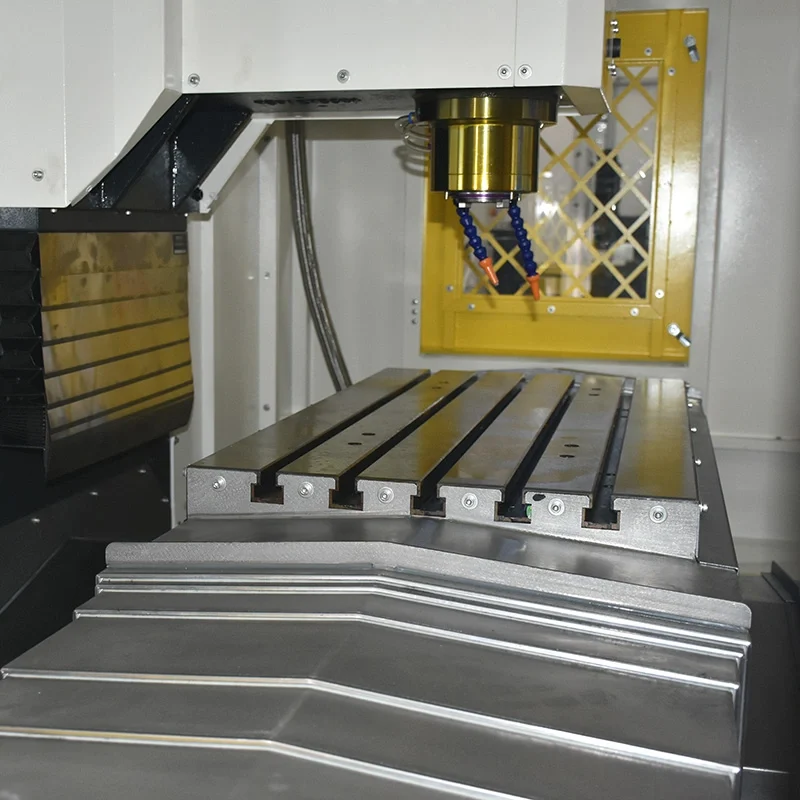

*Table size 1400×700 mm, max. worktable load 800 kg, T-slot 5-18-130 mm

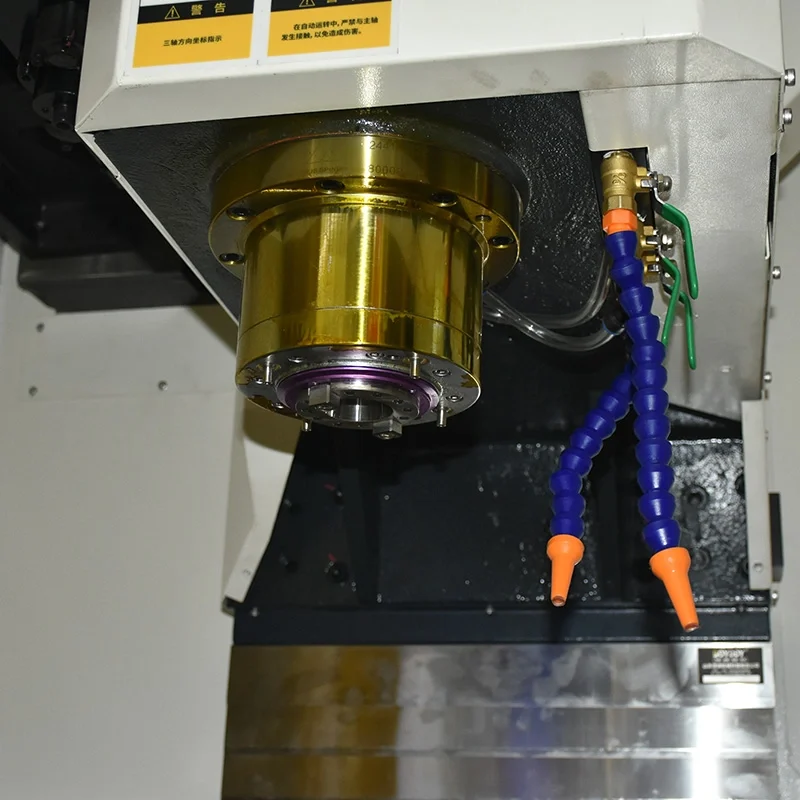

*Spindle taper hole BT40-150, spindle speed 8000 rpm
*X/Y/Z axis travel: 1300/700/750 mm, X/Y rapid shift 24 m/min, Z rapid shift 18 m/min
*Machine size 3550×2730×2620 mm, machine weight 9000 kg
Machine Details
Technical Parameters
| Speicifications | VMC1370D |
|---|---|
| Table size (mm) | 1400×700 |
| Max. worktable load(kg) | 800 |
| X-axis travel(mm) | 1300 |
| Y-axis travel(mm) | 700 |
| Z-axis travel(mm) | 750 |
| X-axis Fast shift speed(m/min) | 24 |
| Y-axis Fast shift speed(m/min) | 24 |
| Z-axis Fast shift speed(m/min) | 18 |
| Spindle taper hole | BT40 Φ150 |
| Spindle speed (rpm) | 8000 |
| Machine size (mm) | 3550L*2730W*2620H |
| Machine weight (KG) | 9000 |
Related Products
VMC855 Vertical Machining Center
VMC1160 Vertical Machining Center

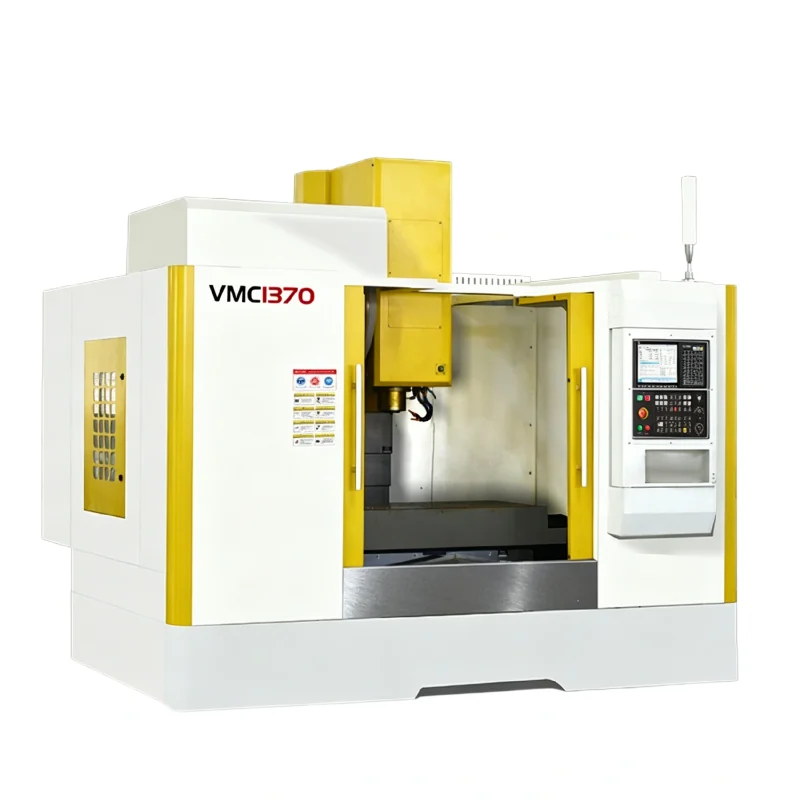

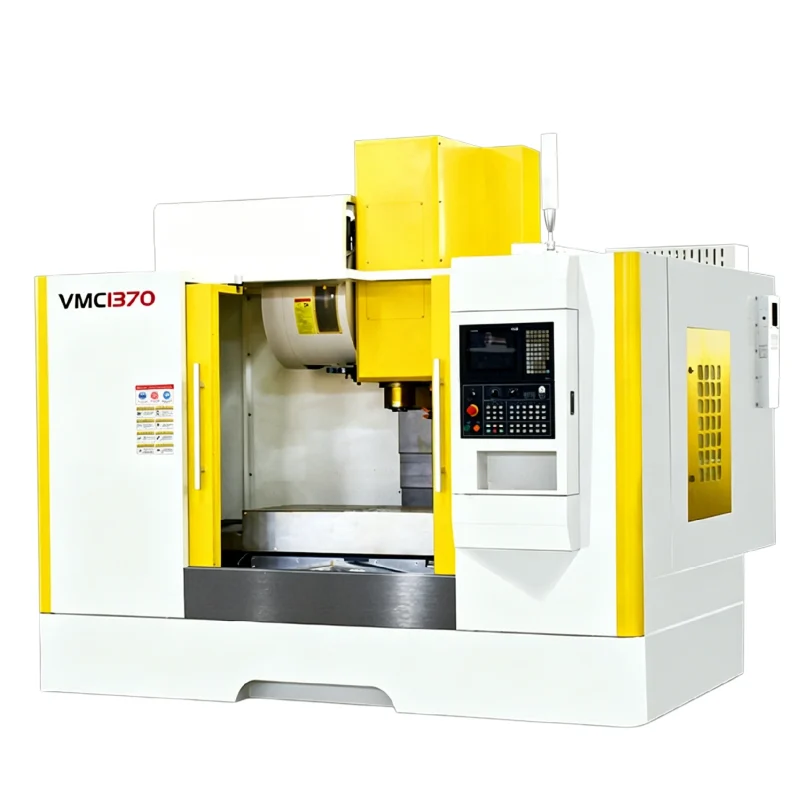

VMC1370 Vertical Machining Center
VMC855D Vertical Machining Center
Frequently Asked Questions
Q: When is the VMC1370D worth comparing with the VMC855D?
A: When the mold setup needs the larger size class. Compare verified travel, clearance and load specifications rather than model numbers alone.
Q: Can a large mold fit on the table but remain difficult to machine?
A: Yes. Tool reach, clamping position and the required toolpath may limit access even when the mold footprint fits.
Q: Should roughing and finishing use the same selection criteria?
A: They overlap, but roughing emphasizes removal demands while finishing emphasizes toolpath and surface requirements. Assess both against the actual configuration.
