VMC 855D
Vertical Machining Center
- Max. Spindle Speed
8000rpm
- X-axis Travel Distance
800mm
- Y-axis Travel Distance
550mm
- Z-axis Travel Distance
550mm
Machine Introduction
Introduction
The VMC855D is a high speed machining center for molds in the medium size class. Its product focus is mold machining rather than the general production positioning of the standard VMC855.
Select the machine around the mold geometry, material condition and required finish. Small cutters, deeper features and contouring operations place different demands on the spindle, toolholders and CNC control. Provide the mold dimensions, material hardness and finishing requirements to discuss the VMC855D, or compare the larger VMC1370D for bigger setups.
Key Features
*Table size 1000×550 mm, max. worktable load 600 kg

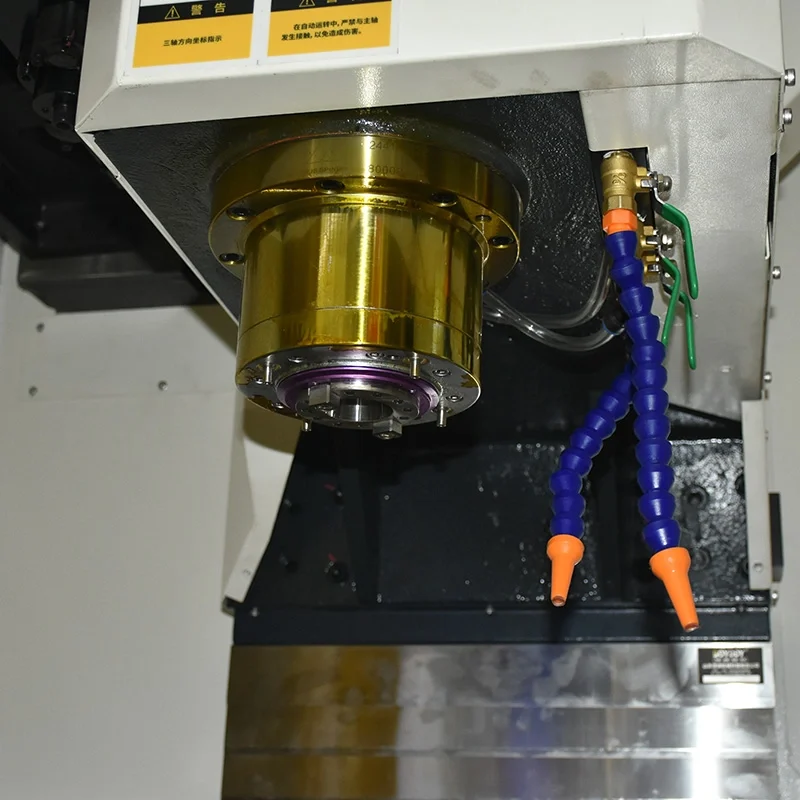

*Spindle taper hole BT40φ150, spindle speed 8000 rpm
*X/Y/Z axis travel: 800/55/550 mm, X/Y rapid shift 32 m/min, Z rapid shift 24 m/min
*Machine size 2600×2380×2400 mm, machine weight 5300 kg
Machine Details
Technical Parameters
| Speicifications | VMC855D |
|---|---|
| Table size (mm) | 1000×550 |
| Max. worktable load(kg) | 600 |
| X-axis travel(mm) | 800 |
| Y-axis travel(mm) | 550 |
| Z-axis travel(mm) | 550 |
| X-axis Fast shift speed(m/min) | 32 |
| Y-axis Fast shift speed(m/min) | 32 |
| Z-axis Fast shift speed(m/min) | 24 |
| Spindle taper hole | BT40 Φ150 |
| Spindle speed (rpm) | 8000 |
| Machine size (mm) | 2600L*2380W*2400H |
| Machine weight (KG) | 5300 |
Related Products
VMC855 Vertical Machining Center
VMC1160 Vertical Machining Center
VMC1370 Vertical Machining Center
VMC1370D Vertical Machining Center
Frequently Asked Questions
Q: Why consider the VMC855D for mold machining?
A: It is the medium-size high-speed mold model in this product range. Confirm that its spindle and control specification match your cutters, material and toolpaths.
Q: Does high spindle speed guarantee a better mold finish?
A: No. Tool condition, toolpath quality, rigidity and machining parameters also affect the surface. Agree on the required finish and inspection method.
Q: What mold details should I provide?
A: Include overall dimensions, fixture layout, material and hardness, deepest features, smallest cutters and the required surface finish.
