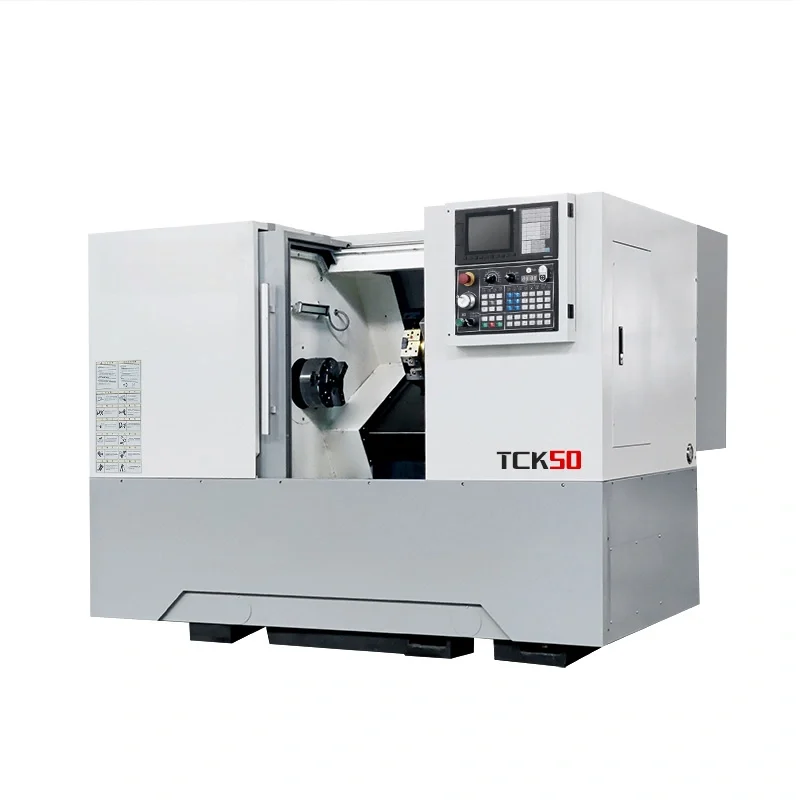

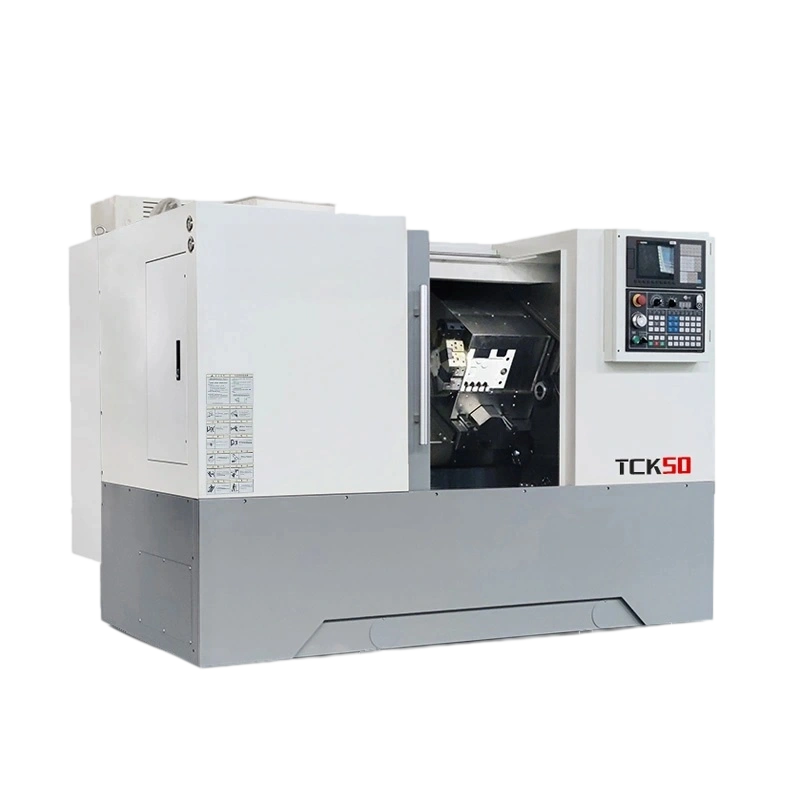

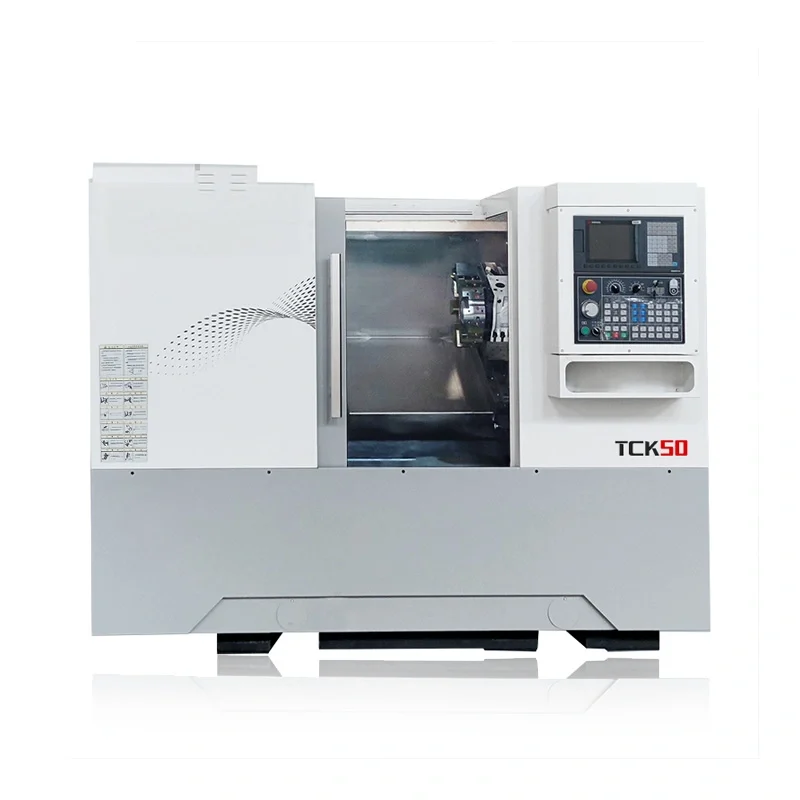

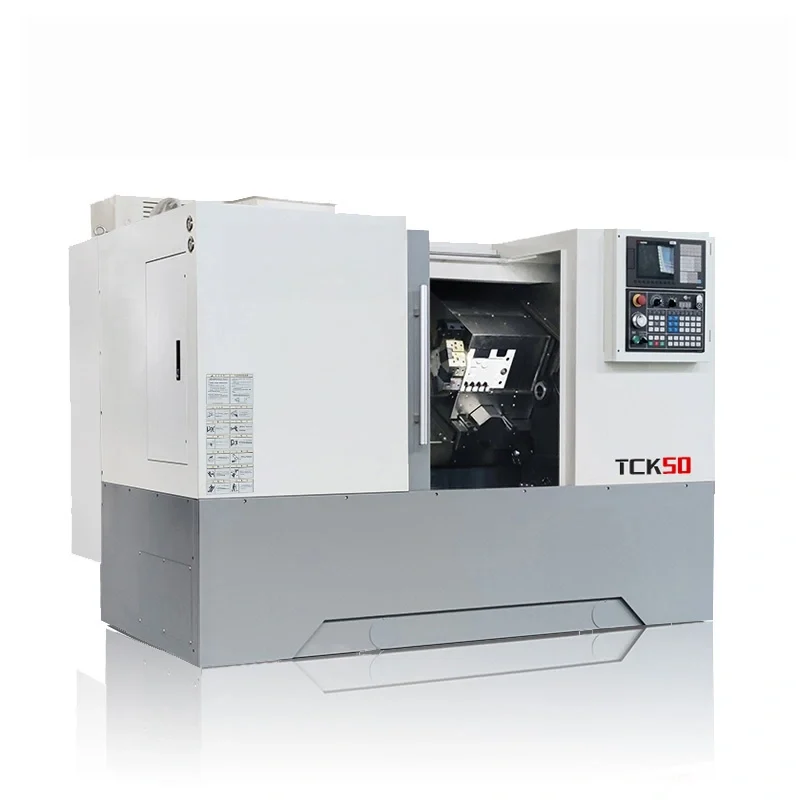

TCK50
CNC Slant Bed Lathe
- Max. Cutting Length
500mm
- Max. Turning Diameter
500mm
- X-axis Travel Distance
200mm
- Z-axis Travel Distance
550mm
Machine Introduction
Introduction
The TCK50 is a small slant bed CNC lathe in the standard turning range. Compare it for turning jobs that call for the smaller size class before moving to the TCK6050 or TCK70.
Part size should be checked with the proposed chucking and tooling arrangement. For slender parts, include the unsupported length and support requirements in the process discussion. Send the blank dimensions, material and finished-part drawing to request a TCK50 recommendation and quotation.
Key Features
*30 ° Slant bed for convenient chip removal
*Small footprint, saving land costs
*Hard rail tailstock for more stable processing

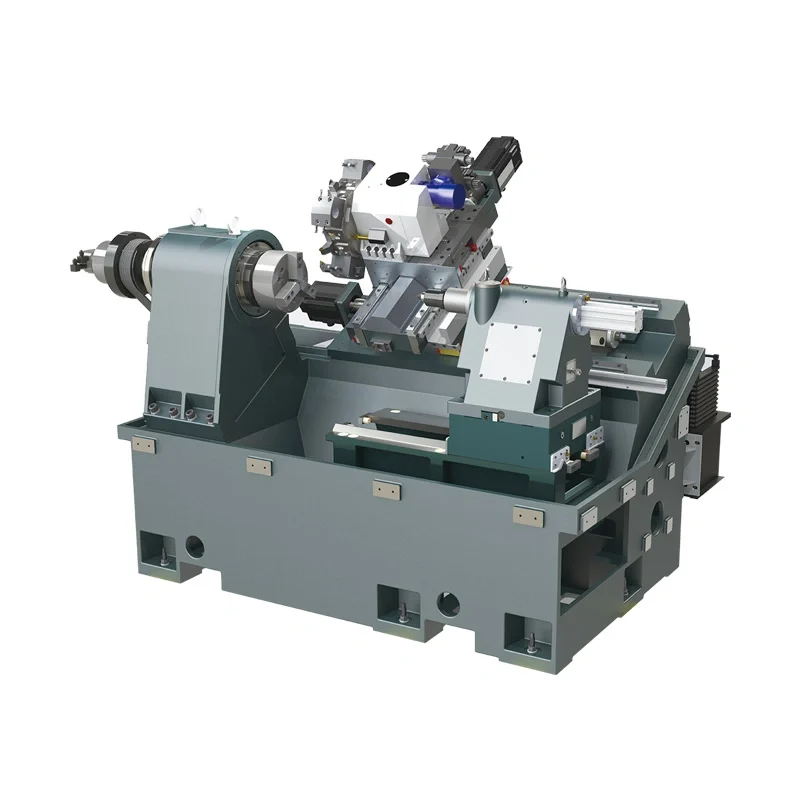

Machine Details
Technical Parameters
| Speicifications | TCK50 |
|---|---|
| Max. turning diameter on bed(mm) | 500 |
| Max. cutting length(mm) | 500 |
| Max. cutting diameter(mm) | 360 |
| Standard cutting diameter(mm) | 240 |
| Max. turning diameter on the skateboard(mm) | 300 |
| Spindle nose type / code | A2-6 |
| Spindle hole diameter(mm) | 65 |
| Max. bar capacity(mm) | 50 |
| Spindle motor output power(kW) | 11/15 |
| X-axis rapid traverse(m/min) | 30 |
| Z-axis rapid traverse(m/min) | 30 |
| X-axis travel(mm) | 200 |
| Z-axis travel(mm) | 550 |
| Tailstock travel(mm) | 450 |
| Tailstock quill stroke(mm) | 100 |
| Approx. gross weight(KG) | 3800 |
| Machine dimensions(mm) | 2300L*1700W*1930H |
Related Products
TCK6050 CNC Slant Bed Lathe
TCK70 CNC Slant Bed Lathe
TCK6350B CNC Slant Bed Lathe
TCK6050D CNC Slant Bed Lathe
Frequently Asked Questions
Q: How is the TCK50 positioned in the standard range?
A: It is the small-size model. TCK6050 and TCK70 represent the medium and large standard size classes.
Q: Does the TCK50 name establish its chuck or bar capacity?
A: No. Verify the actual chuck, spindle bore and usable bar capacity in the proposed specification.
Q: What matters when turning a slender part?
A: Assess unsupported length, workholding, cutting forces and part support. Ask whether the proposed configuration meets the support requirements.
