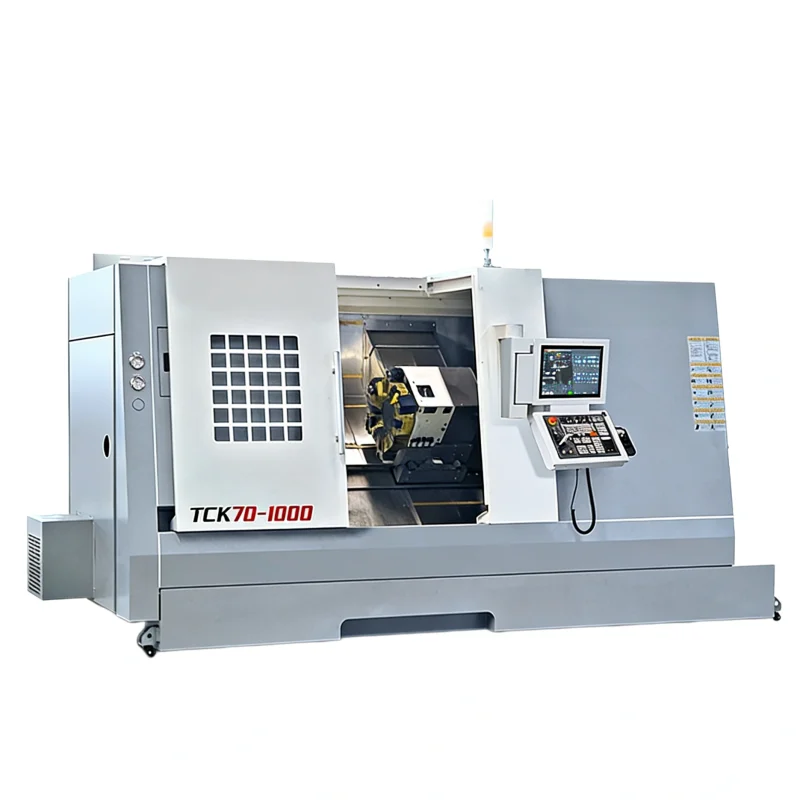

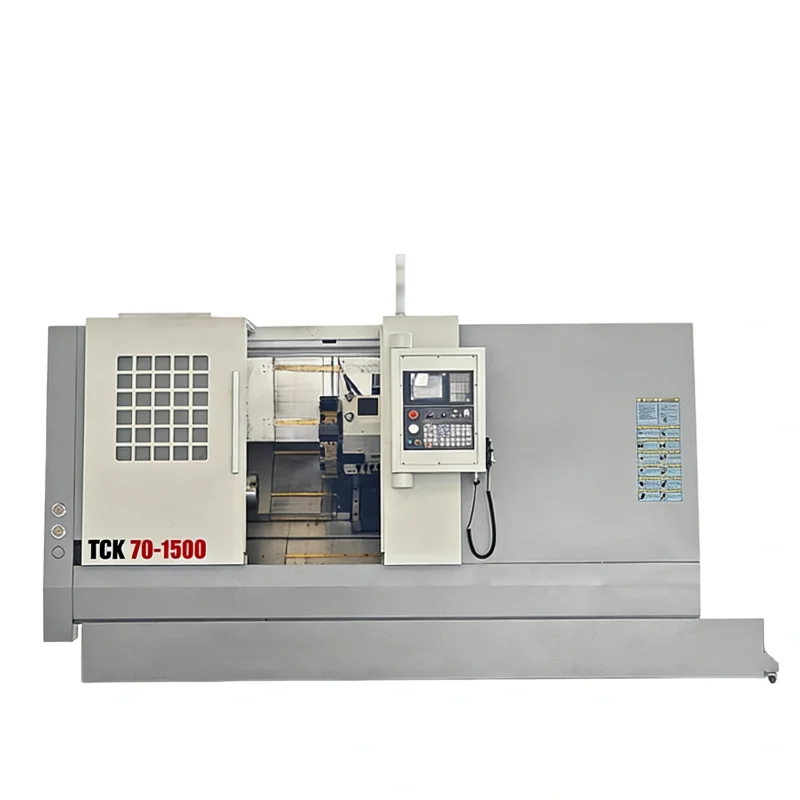

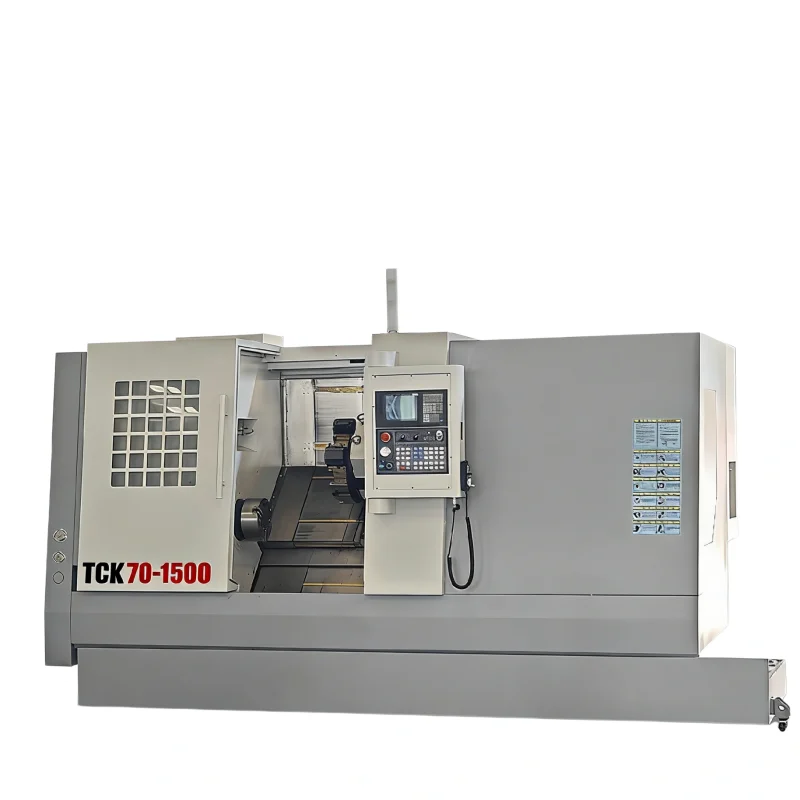

TCK70
CNC Slant Bed Lathe
- Max. Turning Length
1500mm
- Max. Turning Diameter
500mm
- X-axis Travel Distance
250mm
- Z-axis Travel Distance
1520mm
Machine Introduction
Introduction
The TCK70 is a large slant bed CNC lathe in the standard turning range. Consider it when the intended turning setup requires a larger size class than the TCK50 or TCK6050.
A larger blank can add workholding and loading demands as well as diameter and length requirements. Check the complete process, including any support required during cutting. Compare the TCK70D for precision-focused turning or the TCK70Y when milling operations are also part of the job.
Key Features
*This machine tool adopts a 12 station 125 center high turret, with a larger turret span and a single 12mm cutting tool
*Max. cutting length is 1000~3000mm
Machine Details
Technical Parameters
| Speicifications | TCK70 |
|---|---|
| Max. swing over bed(mm) | 720 |
| Max. turning length(mm) | 1500 |
| Max. turning diameter(mm) | 500 |
| Max. swing over cross slide(mm) | 420 |
| Standard turning diameter(mm) | 280 |
| Spindle nose type / code | A2-8/A2-11 |
| Spindle bore diameter(mm) | 80 |
| Max. bar capacity(mm) | 70 |
| Spindle motor output power(kW) | 18.5 |
| X-axis rapid traverse(m/min) | 12 |
| Z-axis rapid traverse(m/min) | 16 |
| X-axis travel(mm) | 250 |
| Z-axis travel(mm) | 1520 |
| Tailstock travel(mm) | 1400 |
| Tailstock quill stroke(mm) | 100 |
| Approx. gross weight(KG) | 8500 |
Related Products
TCK50 CNC Slant Bed Lathe
TCK6050 CNC Slant Bed Lathe
TCK6350B CNC Slant Bed Lathe
TCK6050D CNC Slant Bed Lathe
Frequently Asked Questions
Q: Is the TCK70 the heavy-duty model?
A: It is listed as the large standard model. The TCK6350B and TCK80B belong to the heavy-duty range.
Q: How does the TCK70 compare with the TCK70Y?
A: The TCK70 is a standard slant bed lathe. The TCK70Y is a turn-mill model with a Y-axis and driven-tool turret in this product range.
Q: What should I assess for loading a larger blank?
A: Confirm blank mass, gripping arrangement, access and the handling method together with the machine’s actual work envelope.
